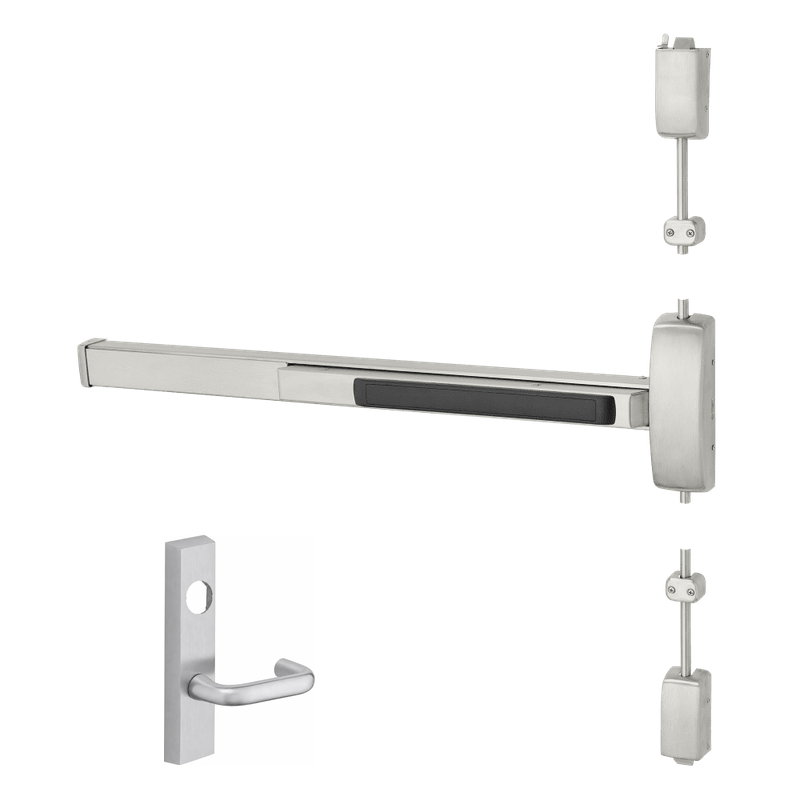

Sargent LC-8706-G-ETJ-96 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETJ-96 is a heavy-duty surface vertical rod exit device engineered for demanding commercial and institutional openings. Built to secure taller doors up to 96 inches in height and widths ranging from 43 to 48 inches, this device pairs reliable panic egress with storeroom-function trim for controlled access. The G (ETJ) lever design provides a comfortable, durable grip, while the less-cylinder configuration lets you specify your preferred mortise cylinder to match an existing keying system. As part of Sargent's respected 80 Series line, this exit device delivers the strength, longevity, and code compliance that facility managers depend on for high-traffic entrances.

Features

• Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door for added security.
• Storeroom function keeps the outside lever locked at all times, with key access retracting the latch while free egress is always available.
• Sized for tall doors measuring 96 inches in height and 43 to 48 inches in width.
• ETJ (G) lever trim offers a robust, ergonomic pull suited to heavy commercial use.
• Less-cylinder build allows field installation of a 1-1/8" mortise cylinder to match your facility's keyway.
• Non-handed device simplifies ordering and stocking.

Functional Details

The storeroom function (06) provides secure access control while never restricting egress. The outside lever remains locked and a key is required to retract the top and bottom latches, while depressing the push bar always allows free exit from the interior.

• Outside lever is always locked.
• Key retracts latch.
• Latchbolt is retracted by key outside or by push bar inside.
• Inside lever or push bar always allows free egress.
