Description

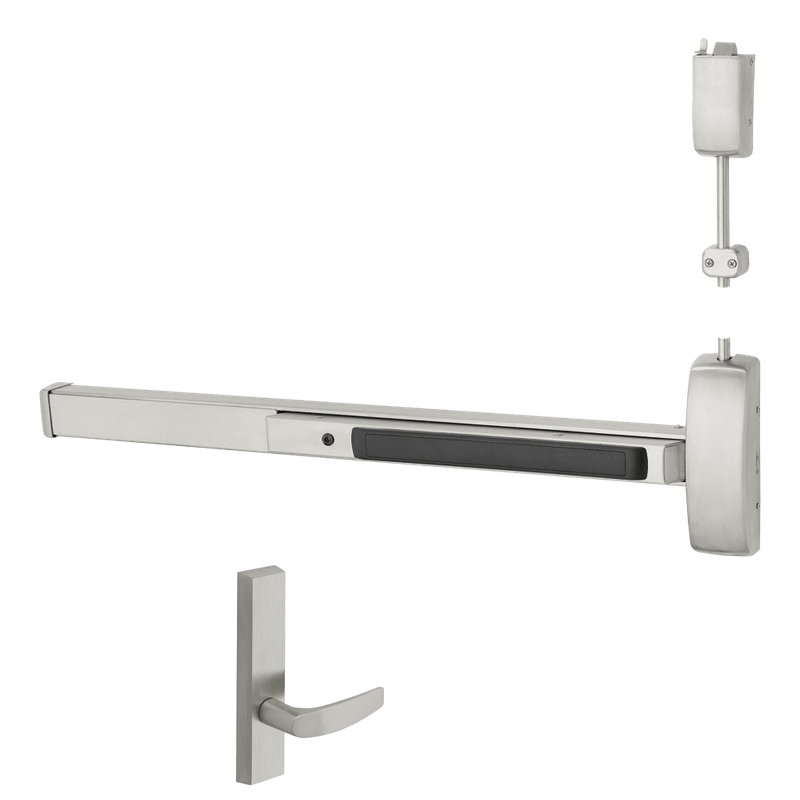

Sargent NB-8715-F-ETB-96 Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 33-36" Dr, 96" Dr Ht, Hex Key Dogging, Less Bottom Rod
The Sargent NB-8715-F-ETB-96 is a surface-mounted vertical rod exit device engineered for demanding commercial openings up to 96 inches in height. Built for passage function, it provides free entry and exit at all times, making it ideal for high-traffic doors where latching security is not required. This fire-rated (F) device pairs with the ETB trim, featuring the B lever for comfortable operation, and is configured for doors 33 to 36 inches wide. The less bottom rod (LBR) design keeps the floor area clear, reducing maintenance and debris buildup, while hex key dogging allows the device to be held in a retracted position for added convenience.
Features
- Surface vertical rod design mounts directly to the door face for straightforward installation and service.
- Passage function offers unrestricted entry and exit, with no locking at the trim.
- Fire-rated (F) construction suits labeled openings requiring positive latching.
- ET control with the B lever provides durable, ergonomic outside trim operation.
- Sized for doors 33 to 36 inches wide and up to 96 inches in height.
- Hex key dogging retracts and holds the latch for push-pull operation during peak traffic.
- Less bottom rod (LBR) configuration eliminates the lower rod and latch for a cleaner floor line.
Functional Details
In passage function, the outside lever and the push bar both retract the latches at all times, allowing free passage from either side. The hex key dogging mechanism lets authorized personnel mechanically hold the push bar depressed, keeping the top latch retracted for continuous push-pull use.
- Passage function – latch bolt retracted by lever or push rail at all times.
- Hex key dogging holds the pushbar in the depressed position.
Arm Type Details
As a surface vertical rod device, the NB-8715 drives a top vertical rod that engages a surface strike at the head of the frame. With the less bottom rod option, only the top latch is active, simplifying the hardware while maintaining reliable top-latching performance.
Included Components
The device ships with the exit chassis, top vertical rod and surface strike, ETB outside trim with B lever, and hex key dogging hardware.
Product Specifications
| Manufacturer | Sargent |
| SKU | NB-8715-F-ETB-96 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for Fire Exit Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Function | Passage (Exit Only) |
| Trim | ETB Control with B Lever |
| Dogging | Hex Key Dogging |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Surface Vertical Rod Exit Device |
| Series | 8700 |
| Door Width Range | 33 in – 36 in |
| Door Height | 96 in |
| Rod Configuration | Less Bottom Rod (LBR) |
| Latch Type | Top Latch, Surface Strike |
| Mounting | Surface Mount |
| Door Type | Wood or Metal Doors |
| Fire Rating | Fire-Rated (F) |
| Dogging Type | Hex Key (Mechanical) |
| Handing | Non-Handed |
