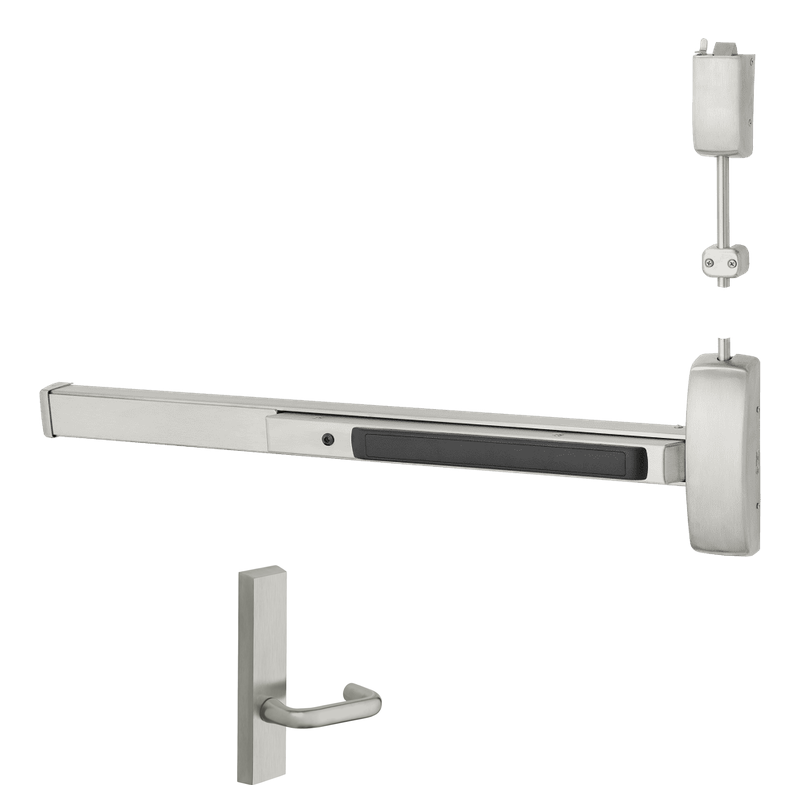

Sargent NB-8715-F-ETJ-84 Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 33-36" Dr, 84" Dr Ht, Hex Key Dogging, Less Bottom Rod

The Sargent NB-8715-F-ETJ-84 is a surface vertical rod exit device built for heavy-duty commercial openings that demand reliable, code-compliant egress. Configured for passage function, it allows free operation from both sides with no locking or latching—ideal for interior corridors and traffic areas where constant access is required. This unit fits doors 33 to 36 inches wide and 84 inches tall, and comes with the ET control housing and J lever trim for smooth outside operation. It features a less bottom rod design for cleaner installation and easier maintenance, plus convenient hex key dogging to hold the latch retracted during peak flow.

Features

• Surface-mounted vertical rod exit device engineered for Grade 1 commercial durability.
• Passage function provides free, non-latching operation from both sides of the door.
• Sized for doors 33 to 36 inches wide and up to 84 inches in height.
• ET control with J lever trim delivers reliable outside operation.
• Less bottom rod (LBR) design reduces floor clutter and simplifies upkeep.
• Hex key dogging allows the push pad to be held in the retracted position for push-pull operation.

Functional Details

The passage (F) function means the exit device never latches, so the door can be pushed or pulled freely from either side while the pad retracts the top latch on every operation. The included ET/J lever trim allows the latch to be retracted from the outside without any locking.

• Passage function – latch retracted by lever or push pad, no locking.
• Hex key dogging holds the active latch retracted for continuous use.

Arm Type Details

As a less bottom rod configuration, this device operates only the top vertical rod and latch, eliminating the lower rod assembly and strike. This keeps the base of the door clear and reduces wear points while still securing the top of the opening.

Included Components

Ships with the surface vertical rod exit device chassis, top vertical rod and latch assembly, ET control housing, J lever outside trim, and mounting hardware. The bottom rod and bottom strike are not included.
