Description

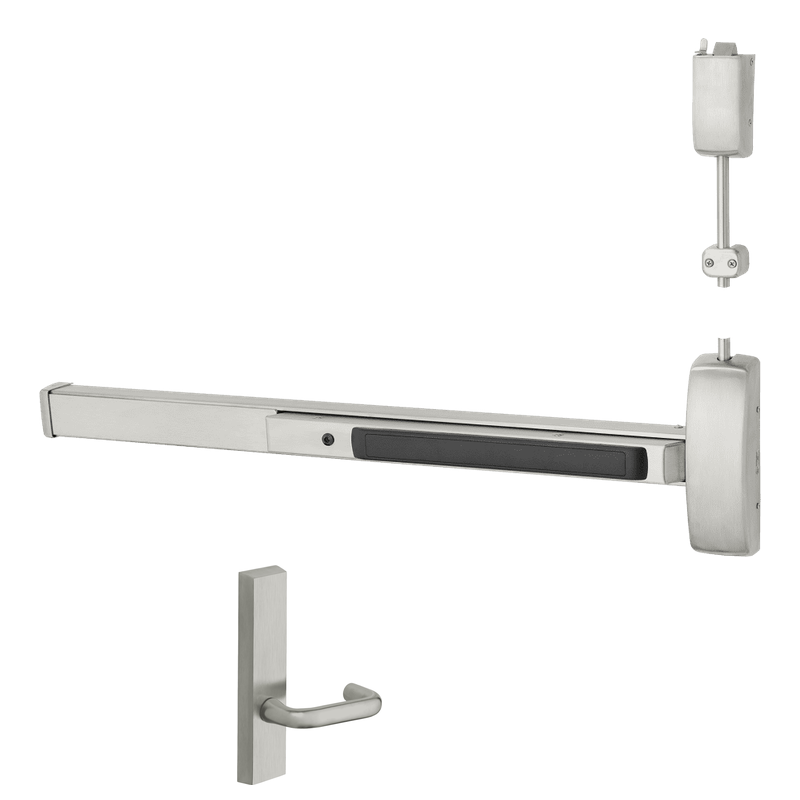

Sargent NB-8715-G-ETJ-84 Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 43-48" Dr, 84" Dr Ht, Hex Key Dogging, Less Bottom Rod
The Sargent NB-8715-G-ETJ-84 is a Grade 1 surface vertical rod exit device engineered for wide, extra-tall commercial openings measuring 43 to 48 inches in width and up to 84 inches in height. Configured for passage function, it allows free entry and exit at all times, making it ideal for high-traffic areas that do not require locking from the trim side. The device pairs with ET control and the J lever for comfortable, ADA-friendly operation. Hex key dogging lets staff hold the pushbar retracted for push-pull convenience during business hours, while the less bottom rod design simplifies installation and reduces maintenance at floor level.
Features
- Surface-mounted vertical rod exit device built to Grade 1 durability standards.
- Passage function provides unrestricted entry and exit with no locking from the outside trim.
- Sized for doors 43 to 48 inches wide and 84 inches tall.
- ET control with J lever delivers smooth, ergonomic operation.
- Hex key dogging holds the pushbar depressed for latch retraction during peak traffic.
- Less bottom rod configuration keeps the floor area clear and cuts down on maintenance.
Functional Details
The passage (exit only) function means the device latches at the top rod while allowing free egress and entry through the outside trim at all times, with no key control required for access.
- Passage function – exit device latches, outside lever or trim always allows entry.
- Hex key dogging mechanically holds the latch retracted for push/pull operation.
Arm Type Details
As a surface vertical rod device, the latching mechanism runs vertically along the door face. In the less bottom rod configuration, only the top rod and latch are active, engaging the strike at the head of the frame for secure top-only latching.
Included Components
Device ships with the ET outside control trim, J lever, top vertical rod assembly, strikes, and mounting hardware. Bottom rod and bottom latch are omitted per the less bottom rod specification.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | NB-8715-G-ETJ-84 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | Made in USA |
| Unit of Measure | Each |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage / Exit Only |
| Trim / Control | ET Control with J Lever |
| Dogging | Hex Key Dogging |
| Configuration | Less Bottom Rod |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 43 in. to 48 in. |
|---|---|
| Door Height | 84 in. |
| Device Series | 8700 Series |
| Latch Type | Vertical Rod, Top Latch Only |
| Mounting | Surface Mount |
| Dogging Type | Hex Key |
| Door Type | Wood or Hollow Metal |
| Handing | Non-Handed |
| ANSI/BHMA Standard | A156.3 |
| UL Listing | UL/cUL Listed Panic Hardware |
