Description

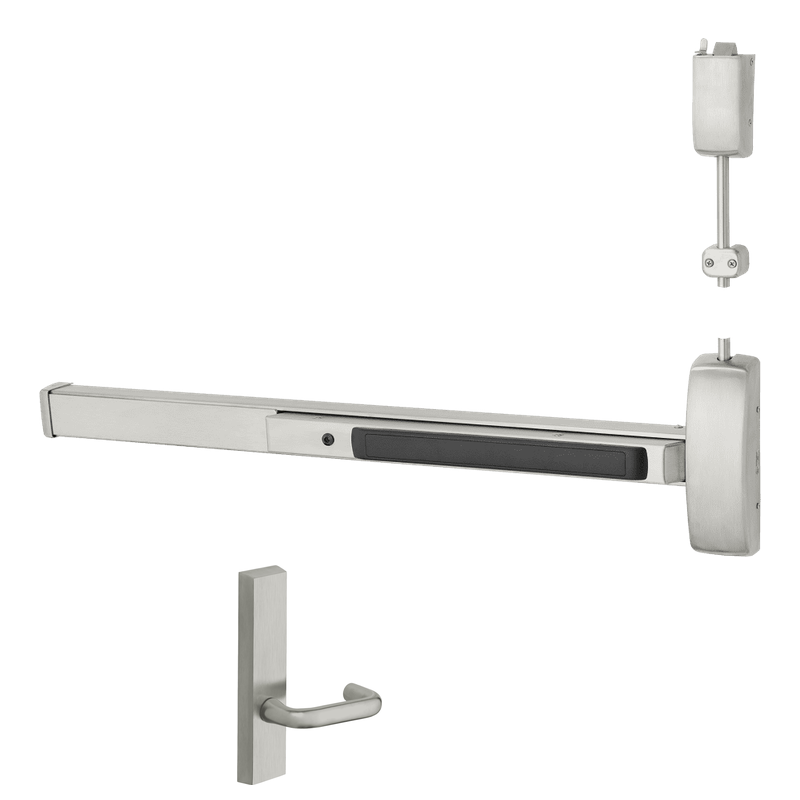

Sargent NB-8715-G-ETJ-96 Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 43-48" Dr, 96" Dr Ht, Hex Key Dogging, Less Bottom Rod
The Sargent NB-8715-G-ETJ-96 is a surface vertical rod exit device engineered for wide, extra-tall openings measuring 43 to 48 inches in width and up to 96 inches in door height. Built for high-traffic commercial applications, it pairs a Grade 1 panic hardware mechanism with the ETJ trim, featuring the J lever for comfortable outside operation in passage function. The less bottom rod (LBR) configuration keeps the floor area clear, reducing maintenance and improving reliability in demanding environments. Hex key dogging allows the device to be held in a retracted, push-pad-free state for free passage during peak hours. This device delivers dependable life-safety egress with the rugged durability Sargent is known for.
Features
- Surface-mounted vertical rod exit device suited for wide doors from 43 to 48 inches in width.
- Accommodates extra-tall openings up to 96 inches in door height.
- Passage function provides free operation with no locking of the outside lever.
- ET control with the J lever offers ergonomic, comfortable outside access.
- Less bottom rod (LBR) design keeps the lower door and floor area clear.
- Hex key dogging holds the push pad depressed for continuous push/pull operation.
- Grade 1 construction for durability in high-traffic commercial settings.
Functional Details
The passage function allows the exit device latch to retract freely from both sides, providing unrestricted access without any locking of the outside trim. The lever operates the latch at all times, making it ideal for openings where controlled egress without security locking is required.
Arm Type Details
This device uses the ETJ trim, which combines the ET escutcheon-style outside control with the J lever design. The J lever provides a smooth, contoured grip that retracts the latch when operated from the outside, while the interior push pad handles egress from the inside.
Included Components
The device ships with the top vertical rod assembly, top latch, mounting hardware, and the ETJ outside trim with J lever. The less bottom rod configuration omits the lower rod and latch assembly.
Product Specifications
| Manufacturer | Sargent |
| SKU | NB-8715-G-ETJ-96 |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Passage (Exit Only / Free Operation) |
| Trim / Control | ET Control with J Lever |
| Dogging Type | Hex Key Dogging |
| Grade | ANSI/BHMA Grade 1 |
| Door Width Range | 43 to 48 inches |
| Door Height | 96 inches |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing | UL Listed Panic Hardware |
| Limited Warranty | Yes |
Technical Specifications
| Series | 8700 |
| Configuration | Less Bottom Rod (LBR) |
| Latch Bolt Throw | 3/4 inch |
| Device Projection | Approximately 3 inches |
| Push Pad Material | Stainless Steel |
| Minimum Door Stile | 4 inches |
| Door Thickness | 1-3/4 inches standard |
| Mounting | Surface Vertical Rod |
| ANSI/BHMA Standard | A156.3 Grade 1 |
| Fire Rating | Non-fire (Passage / LBR) |
| Cylinder | Less Cylinder |
