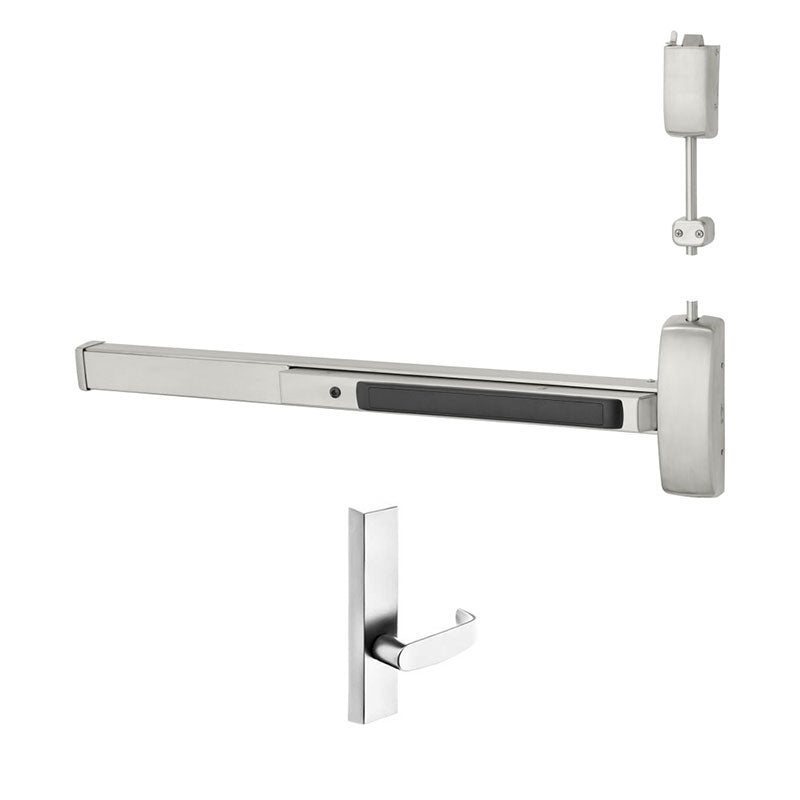

Sargent NB-8715-G-ETL-84 Surface Vertical Rod Exit Device, Less Bottom Rod Passage Function, ETL Trim, 84" Height, 43"-48" Bar

  • SKU: NB8715GETL84US32DLHR
$2,065.35/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

Sargent NB-8715-G-ETL-84 is a 43"-48" Surface Vertical Rod Exit Device features a Less Bottom rod with ETL Passage Function Trim that Is Non-Fire Rated. The NB-8715-G-ETL-84 has an 84" high single-point top latching and comes In US32D/630 And US10B/613 Finishes.

Features • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Passage
Device Length 48"
Hand Optional
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Minimum Stile Size 4-1/2" with Trim
Door Material Metal or Wood
Door Width 43" - 48"
Door Height 84"
Door Thickness 1-3/4" to 2-1/4"
Fire Rated No
Product Type Surface Vertical Rod Exit Devices
Product Cut Sheet

Panic Handing Chart
