Description

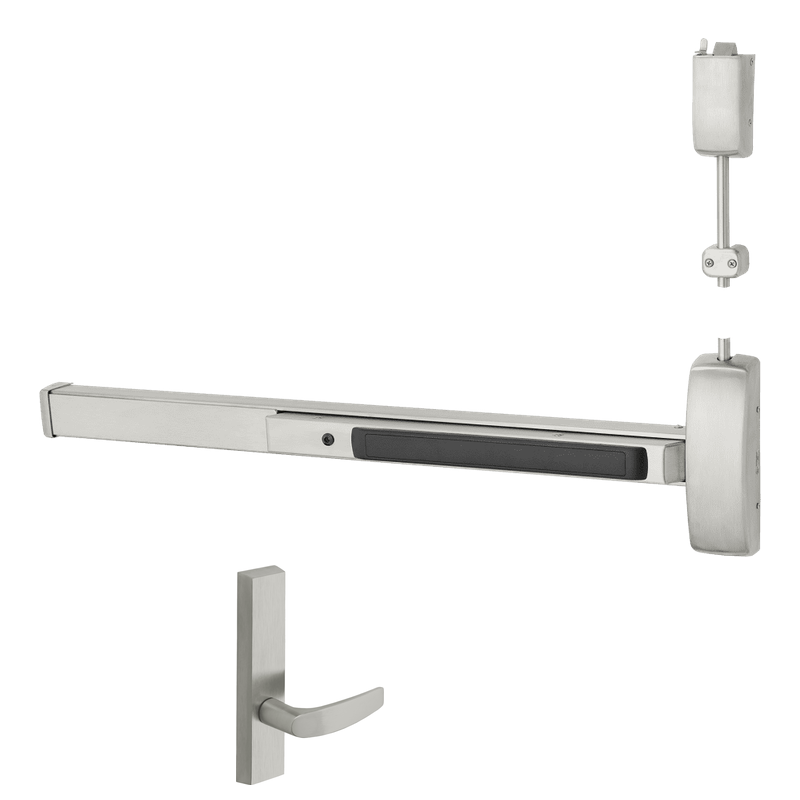

Sargent NB-8715-J-ETB-96 Surface Vertical Rod Exit Device, Passage Function, ET Control, B Lever, 37-42" Dr, 96" Dr Ht, Hex Key Dogging, Less Bottom Rod
The Sargent NB-8715-J-ETB-96 is a surface-mounted vertical rod exit device engineered for demanding commercial openings. Built for doors between 37 and 42 inches wide and up to 96 inches tall, this device delivers reliable panic egress with a passage (exit only) function, allowing free exit at all times. It features the ETB trim with the B lever for pull-side access and comes less bottom rod (LBR), which keeps the lower portion of the door clear for easier maintenance and better floor clearance. Hex key dogging lets authorized staff hold the latch retracted for push/pull operation during high-traffic periods. A dependable choice for schools, healthcare, and institutional facilities.
Features
- Surface-mounted vertical rod design for both top and bottom latching coverage.
- Passage function provides free egress without locking from the outside.
- ETB trim with the B lever offers durable pull-side operation.
- Less bottom rod (LBR) configuration improves floor clearance and reduces maintenance.
- Hex key dogging holds the latch retracted for continuous push/pull access.
- Sized for wide doors measuring 37 to 42 inches and tall openings up to 96 inches.
- Rugged construction suited for high-use commercial and institutional environments.
Functional Details
The passage (exit only) function provides unrestricted egress from the push side at all times while the ETB trim with the B lever controls access from the opposite side. Hex key dogging allows the device to be mechanically held in the dogged position for free operation.
- Exit only – no outside operation.
- Free egress at all times.
- Hex key dogging for push/pull operation.
Arm Type Details
As a surface vertical rod device, the top and bottom rods secure the door into the frame head and threshold. In this less bottom rod version, latching is provided at the top only, keeping the bottom of the door unobstructed.
Included Components
The device ships with the exit chassis, surface-mounted vertical rod assembly (top rod), ETB trim with B lever, and the necessary mounting and strike hardware for installation.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | NB-8715-J-ETB-96 |
| Device Series | 80 Series Exit Devices |
| Grade | ANSI/BHMA Grade 1 |
| Function | Passage (Exit Only) |
| Trim | ETB with B Lever |
| Dogging | Hex Key Dogging |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed Panic Hardware |
| ANSI Number | A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Manufacturer's Limited Warranty |
Technical Specifications
| Device Type | Surface Vertical Rod Exit Device |
|---|---|
| Door Width Range | 37 in. to 42 in. |
| Door Height | 96 in. |
| Rod Configuration | Less Bottom Rod (LBR) |
| Latch Coverage | Top Latch Only |
| Mounting | Surface Mounted |
| Minimum Stile Width | 1 in. |
| Projection (Dogged) | 2-3/4 in. |
| Projection (Undogged) | 3-5/8 in. |
| Latchbolt Throw | 3/4 in. |
| Handing | Non-Handed |
