Description

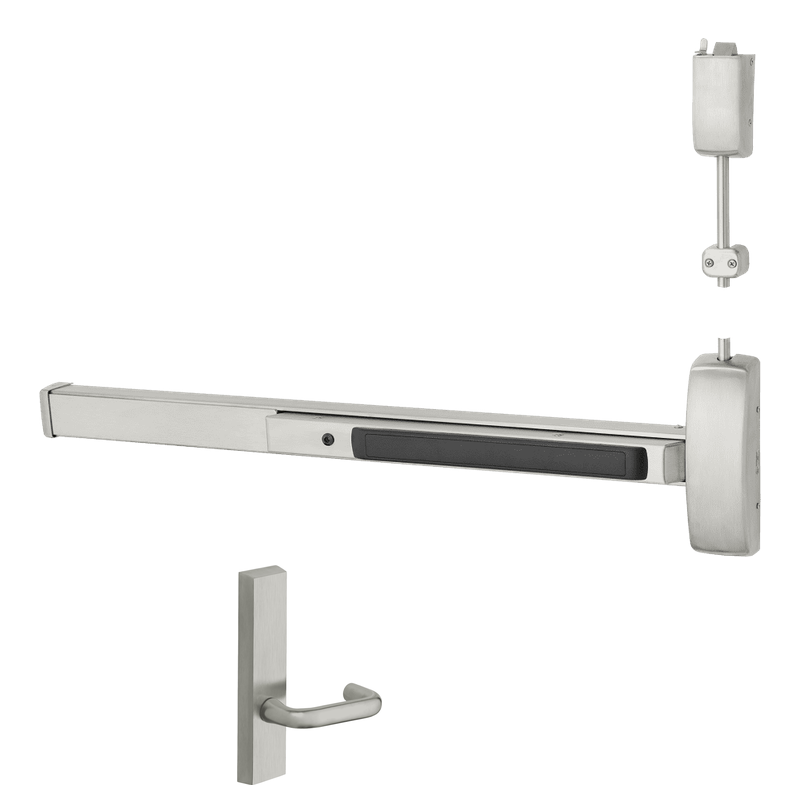

Sargent NB-8715-J-ETJ-84 Surface Vertical Rod Exit Device, Passage Function, ET Control, J Lever, 37-42" Dr, 84" Dr Ht, Hex Key Dogging, Less Bottom Rod
The Sargent NB-8715-J-ETJ-84 is a surface-mounted vertical rod exit device built for heavy-duty commercial openings that require reliable passage operation. Designed for doors measuring 37 to 42 inches wide and up to 84 inches in height, this device pairs ANSI/BHMA Grade 1 performance with the convenience of ET control and the J lever trim. Its passage function allows free entry and exit at all times, making it ideal for high-traffic corridors and non-locking applications. The less bottom rod (LBR) configuration keeps the floor area clear, reducing maintenance and contamination from debris, while hex key dogging holds the pushbar retracted for continuous push/pull access.
Features
- Surface vertical rod exit device engineered for Grade 1 commercial durability.
- Passage function provides free, unlocked operation from both sides of the opening.
- ET control with the J lever offers a clean, ergonomic trim design.
- Sized for doors 37 to 42 inches wide and 84 inches in height.
- Less bottom rod (LBR) design eliminates the lower latching mechanism for a cleaner floor line and easier upkeep.
- Hex key dogging secures the pushbar in the retracted position for push/pull access.
Functional Details
The passage function (NB prefix) keeps the exit device unlocked at all times, allowing the door to be opened freely from either side without a key or credential. The hex key dogging feature lets staff hold the latch retracted to leave the opening in a continuous push/pull state during peak hours.
Arm Type Details
This is a surface-mounted vertical rod configuration. Rods run vertically along the door face to engage a top latch point, with the less bottom rod option removing the lower rod and strike to keep the base of the door clear.
Included Components
The device ships with the 8700 series surface vertical rod mechanism, ET control trim with the J lever, top rod and latch hardware, and mounting components appropriate for the specified door size.
Product Specifications
| Manufacturer | Sargent |
| SKU | NB-8715-J-ETJ-84 |
| Series | 8700 Surface Vertical Rod |
| Grade | ANSI/BHMA Grade 1 |
| Function | Passage (Exit Only) |
| Trim | ET Control, J Lever |
| Dogging Type | Hex Key Dogging |
| Rod Configuration | Less Bottom Rod (LBR) |
| Origin | Made in USA |
| Unit of Measure | Each |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Manufacturer limited warranty |
Technical Specifications
| Door Width Range | 37 in to 42 in |
| Door Height | 84 in |
| Device Type | Surface Vertical Rod |
| Mounting | Surface Mounted |
| Latch Points | Top (less bottom rod) |
| Door Type | Wood or Hollow Metal |
| Handing | Non-handed |
| Trim Spindle | Standard ET lever |
| Dogging Operation | 1/4 in Hex Key |
| Cycle Rating | Grade 1 heavy-duty cycle tested |
