Sargent NB-8715-J-ETL-96 Surface Vertical Rod Exit Device, Passage Function, ET Control, L Lever, 37-42" Dr, 96" Dr Ht, Hex Key Dogging, Less Bottom Rod

The Sargent NB-8715-J-ETL-96 is a surface-mounted vertical rod exit device built for heavy traffic commercial openings up to 96 inches in height and doors measuring 37 to 42 inches wide. Configured for passage function, it allows free entry and exit without locking, making it ideal for stairwells, corridors, and other code-compliant pathways. The device features the ET exterior trim with the J (L lever) design for clean, dependable operation. Hex key dogging holds the latch retracted for push-pull traffic during peak hours, while the less bottom rod design simplifies installation and reduces floor-level maintenance concerns on tall door applications.

Features

• Surface vertical rod exit device engineered for durable, high-use commercial service.
• Passage function provides unrestricted entry and exit with no locking of the trim.
• Sized for doors 37 to 42 inches wide and up to 96 inches in height.
• Hex key dogging allows the latch to be held retracted for continuous push-pull operation.
• Less bottom rod configuration eliminates the lower latch for easier installation and cleaner floor clearance.
• Includes ET exterior trim with the L lever (J) for reliable, ergonomic access.

Functional Details

The passage function allows the door to open freely from either side at all times, with the exterior lever always active and the latch retracting on operation of the trim or push rail.

• Passage function – exit device always unlocked; lever or thumbpiece retracts latch for free passage.

Included Components

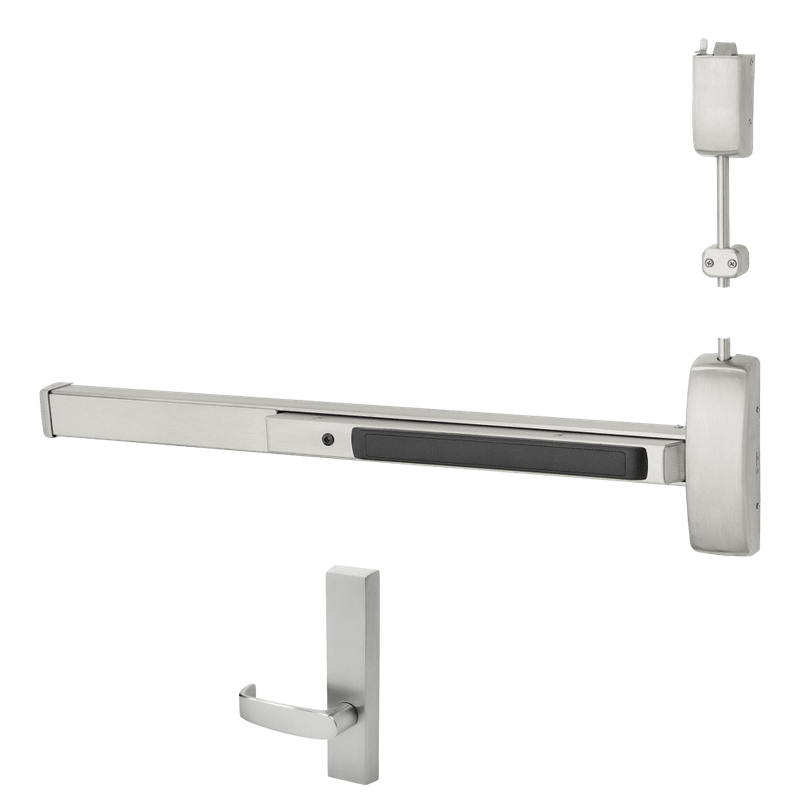

This unit ships with the surface vertical rod exit device chassis, ET exterior control trim with L lever, mounting hardware, and the top vertical rod assembly configured for a 96-inch door height.
