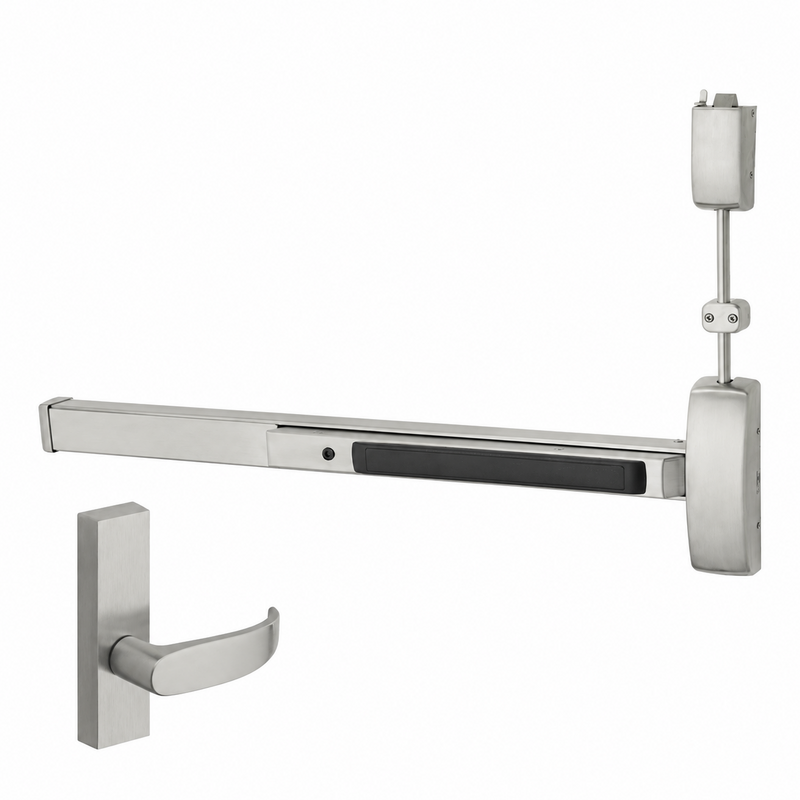

NB8774JETP9612VUS32DLHR — Sargent
NB8774JETP9612VUS32DLHR — Sargent
NB8774JETP9612VUS10BLHR — Sargent
NB8774JETP9612VUS10BELHR — Sargent
NB8774JETP9612VBSPLHR — Sargent
Zoomed view
All SARGENT Products

Sargent NB-8774-J-ETP-96-12V Electrified Surface Vertical Rod Exit Device, Fail Secure Function, For 37-42" Width, 96" Ht Door, Less Bottom Rod, No Cylinder

  • SKU: NB8774JETP9612VUS32DLHR
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,373.01/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Sargent NB-8774-J-ETP-96-12V Surface Vertical Rod Exit Device, Electrified Trim 12V Fail Secure, ET Control, P Lever, 37-42 In Door, 96" Dr Ht, Hex Key Dogging, Less Btm Rod, No Cylinder, Grade 1

The Sargent NB-8774-J-ETP-96-12V is a Grade 1 NB8700 top-latching surface vertical rod exit device, less bottom rod for 37 to 42-inch door widths and 96-inch door height. This configuration is non-fire-rated panic hardware. It is supplied with ETP electrified trim and the P lever design.

  • 37 to 42-inch door width; 96-inch door height.
  • Single-point top latching; no bottom rod or bottom strike.
  • Hex key dogging for the non-fire-rated configuration.
  • ANSI/BHMA A156.3 Grade 1.

Function 74 is Fail Secure electrified ET trim operation. At 12VDC, power off locks the outside lever. The pushbar mechanically retracts the latch for egress independently of the electrical state of the outside trim.

No Cylinder. This function uses no cylinder and is not a less-cylinder preparation requiring a separately purchased cylinder. Cylinder override is not available with NB8700 Series devices.

Series NB8700
Function 74 - Fail Secure
Specified Voltage 12VDC
Outside Trim ETP - P lever
Cylinder No cylinder
Door Width 37 to 42 inches
Door Height 96 inches
Rail Size J
Handing Select LHR or RHR variant; match the supplied trim to the opening
Dogging Hex key dogging
Latching Top latch only; less bottom rod
Minimum Stile Width 4-1/2 inches with trim; 3-1/2 inches without trim
Door Thickness 1-3/4 inches minimum; thicker doors require the appropriate option
Pushbar Projection - Neutral 3 inches
Pushbar Projection - Depressed 2-1/8 inches
Center Case 8-3/8 x 2-5/8 inches
