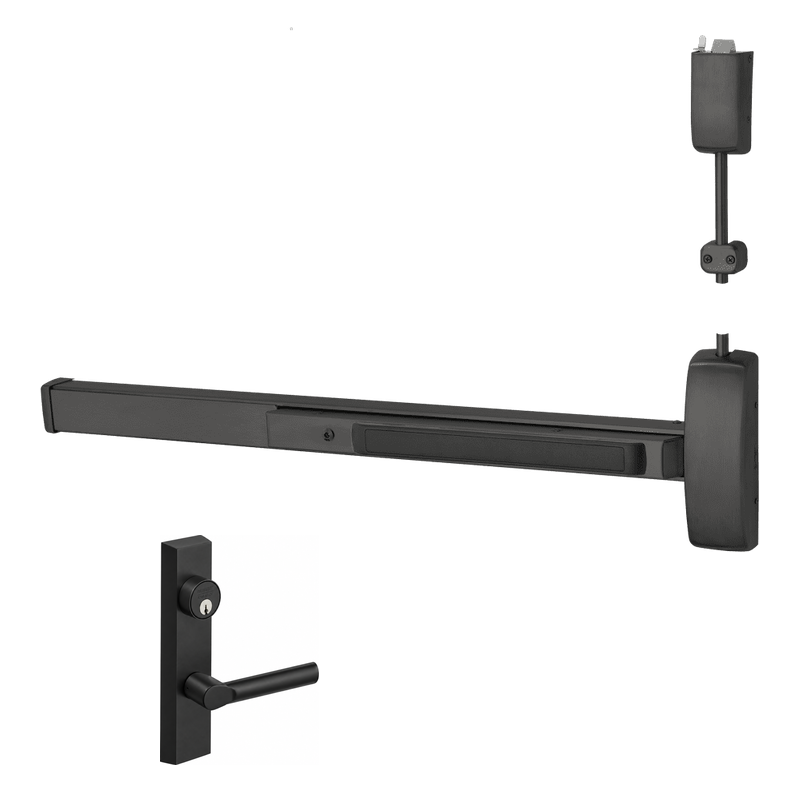

Sargent NB8706-G-ETMB-BSP Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 96" Ht Door, Less Bottom Rod, BSP Black Suede Powder Coat

The Sargent NB8706-G-ETMB-BSP is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Designed for doors measuring 43 to 48 inches wide and up to 96 inches tall, it ships in a less-bottom-rod (LBR) configuration to minimize debris buildup and lower maintenance in high-traffic areas. This storeroom-function device pairs with the ETMB trim, keeping the outside lever rigid while the key retracts the latch for controlled entry. Finished in durable BSP Black Suede Powder Coat, it delivers reliable Grade 1 performance, dependable security, and long service life for schools, healthcare facilities, and institutional buildings.

Features

• Surface-mounted vertical rod design for secure dual-point latching at the top of the door.
• Less bottom rod (LBR) configuration reduces floor-level obstructions and maintenance needs.
• Sized for wide openings from 43" to 48" and tall 96" doors.
• Storeroom function provides a secure, always-locked exterior with free egress.
• ETMB lever trim offers a durable, institutional-grade entry option.
• BSP Black Suede Powder Coat finish resists wear and adds a clean, modern appearance.
• Grade 1 rated for high-use commercial applications.

Functional Details

The storeroom (Function G) configuration keeps the outside lever fixed at all times, requiring a key to retract the latch and gain entry. The inside push bar always allows immediate, free egress, making it ideal for secured storage and controlled-access rooms.

• Outside trim is always locked.
• Key retracts latch only; latch returns to projected position when key is released.
• Inside device always allows free egress.

Arm Type Details

As a surface vertical rod device, latching is handled by a top rod and latch mechanism mounted to the surface of the door. The LBR version omits the bottom rod and latch, directing security to the top point while improving reliability at the floor level.

Included Components

This device ships with the surface vertical rod exit chassis, top rod and latch assembly, ETMB lever trim, and required mounting hardware for installation on compatible commercial doors.
