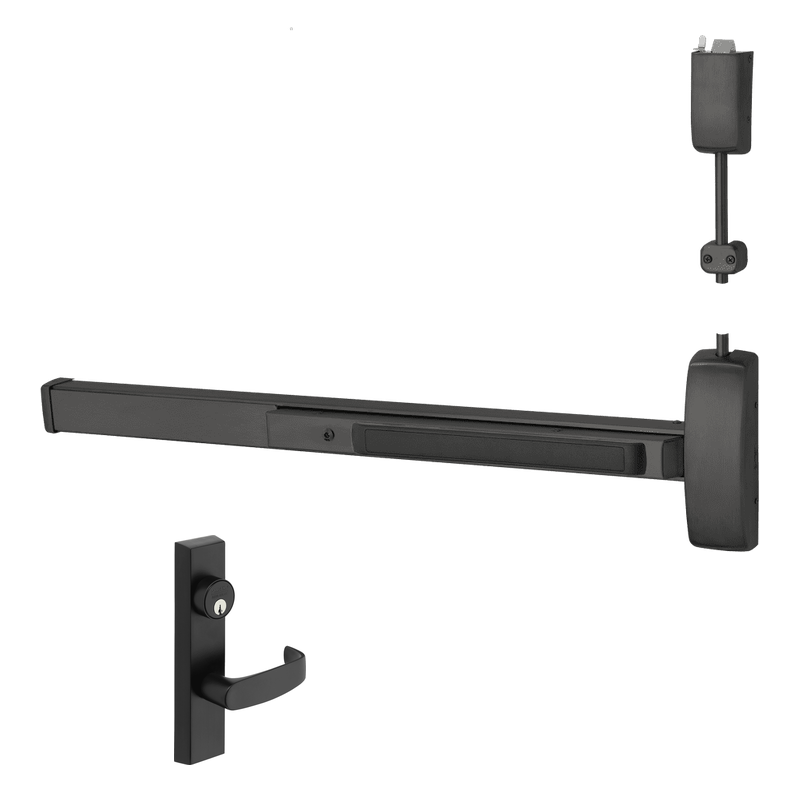

Sargent NB8713-G-ETL-96-BSP-RHR Surface Vertical Rod Exit Device, Classroom, For 43-48" Width, 96" Ht Door, Less Bottom Rod, BSP Finish

The Sargent NB8713-G-ETL-96-BSP-RHR is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Designed with classroom (G) function, it allows free egress at all times while the outside lever is controlled by a key, making it ideal for schools, offices, and institutional entries. This configuration accommodates doors measuring 43 to 48 inches wide and up to 96 inches in height, and it ships less bottom rod for cleaner floor clearance and reduced maintenance. Finished in BSP (Black Suede Powder Coat) and set for right-hand reverse (RHR) operation, it pairs rugged Grade 1 performance with the ETL trim for dependable, long-term service.

Features

• Surface-mounted vertical rod design for secure top and bottom latching.
• Classroom (G) function allows key control of the outside lever while permitting free egress.
• Less bottom rod construction improves floor clearance and reduces maintenance.
• Sized for 43–48" wide and up to 96" tall doors.
• Right-hand reverse (RHR) handing for proper installation orientation.
• ETL lever trim for comfortable, reliable operation.
• Durable BSP (Black Suede Powder Coat) finish.
• Grade 1 rated for high-traffic, heavy-use applications.

Functional Details

The classroom function (G) keeps the latch retracted from the inside for unrestricted egress, while the outside lever is locked or unlocked by key. Depressing the push bar always releases the latch, ensuring safe exit under all conditions.

• Latchbolt is retracted by lever or key from outside.
• Key locks or unlocks outside lever.
• When outside lever is locked, latchbolt is retracted by key.
• Inside lever or push pad always active for immediate egress.

Arm Type Details

This device uses a surface-mounted vertical rod configuration, with latching points at the top and bottom of the door frame. Because it ships less bottom rod, latching occurs at the top only, simplifying installation and minimizing floor-level wear.

Included Components

The device includes the exit device chassis, top vertical rod and latch assembly, ETL lever trim, mounting hardware, and strike components appropriate for the specified door size.
