Sargent PE8810-E Wide Stile Rim Exit Device, Dummy-Function, Exit Only, For 26"-32" Inch Door

  • SKU: PE8810EUS32D

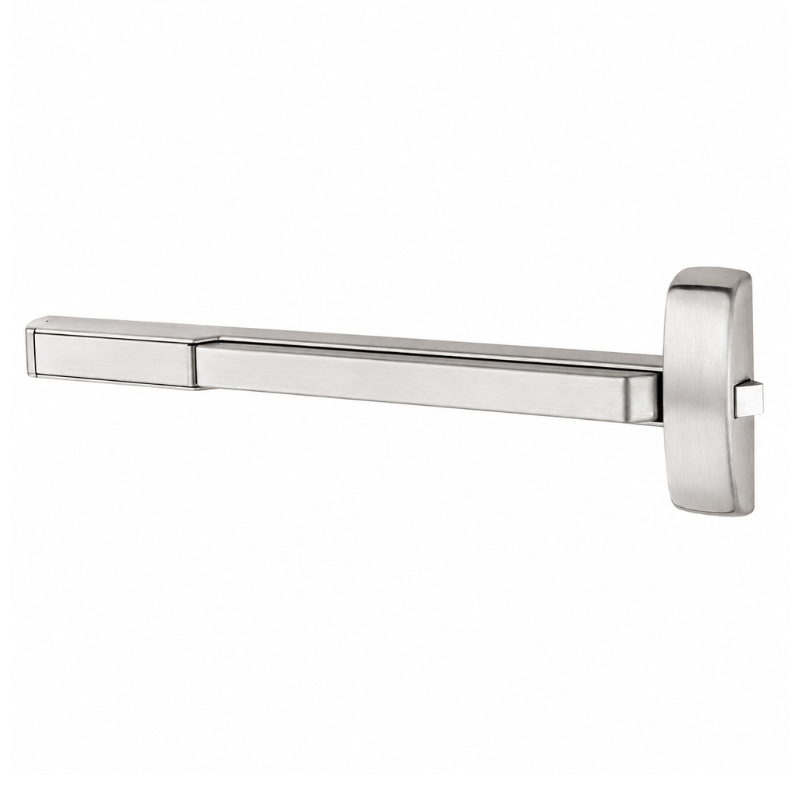

SARGENT PE8810-E US32D wide stile rim exit device, exit only dummy push bar in satin stainless finish
SARGENT PE8810-E US32D wide stile rim exit device, exit only dummy push bar in satin stainless finish
SARGENT PE8810-E-US3 wide stile rim exit device, polished brass dummy push bar with latch
SARGENT PE8810-E wide stile rim exit device dummy trim, satin brass US4, straight push bar design
SARGENT PE8810-E-US9 wide stile rim exit device, polished bronze dummy push bar with rectangular escutcheon
SARGENT PE8810-E rim exit device, US10 satin bronze, wide stile push bar with latch
SARGENT PE8810-E-US10B wide stile rim exit device, oil-rubbed bronze push bar with end cap and latch
SARGENT PE8810-E wide stile rim exit device, US10BE dark bronze, push bar with rim latch
SARGENT PE8810-E wide stile rim exit device, dummy function, dark bronze US10BL push bar
SARGENT PE8810-E US32 wide stile rim exit device, exit-only dummy push bar in polished stainless finish
SARGENT PE8810-E BSP wide stile rim exit device, black finish, dummy exit-only push bar
SARGENT PE8810-E WSP wide stile rim exit device, satin stainless push bar with escutcheon, dummy exit only
Sargent PE8810-E Wide Stile Rim Exit Device, Dummy-Function, Exit Only, For 26"-32" Inch Door►
Zoomed view
All SARGENT Products

Sargent PE8810-E Wide Stile Rim Exit Device, Dummy-Function, Exit Only, For 26"-32" Inch Door

  • SKU: PE8810EUS32D
  • ✓
    Ships in (4‑5 Weeks)
    4-5 Weeks Lead Time
Your Price
$1,191.40/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel

Sargent PE8810-E Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 26"-32" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1

The Sargent PE8810-E Wide Stile Rim Exit Device is a Grade 1 exit device built for 26"-32" inch door applications where a durable dummy-function, exit only configuration is required. This PE8810-E model is designed for wide stile rim installations and includes hex key dogging for convenient hold-open operation when permitted by code. Its reversible non-handed design helps simplify ordering and installation, while the rugged construction supports dependable performance in demanding commercial openings. For projects that need a compact-width rim exit device with trusted Sargent quality, this exit only unit offers a practical and code-oriented solution.

Features

  • Sargent PE8810-E wide stile rim exit device is designed for 26"-32" inch door openings.

  • Dummy-function, exit only configuration provides egress operation for the specified opening condition.

  • Hex key dogging allows the push bar to be held in the depressed position when dogging is allowed.

  • Reversible non-handed construction supports flexible installation and easier field handling.

  • Grade 1 classification is suited for demanding commercial applications.

Functional Details

This dummy-function, exit only rim device is intended for applications where the device is used on the egress side without trim operation as specified for the opening. The PE8810-E uses a rim exit device configuration for wide stile doors and incorporates dogging to hold the touchpad down for free passage when appropriate for the door and code requirements.

  • Devices are non-handed and field reversible.

  • Hex key dogging is standard on mechanical devices.

  • Sized for 2'-2" to 3'-0" doors.

  • UL listed for Accident Hazard.

  • ANSI/BHMA A156.3 Grade 1.

Included Components

The device is supplied as a Sargent PE8810-E wide stile rim exit device with standard hex key dogging. It is furnished in a reversible non-handed configuration for field adjustment and installation on the appropriate opening.

Rail Sizes

 Stock Size  Door Opening Widths  Remarks
 E  24" to 32" (61 cm to 81 cm)  No cutting required for 32" (81 cm) door
 F  32.5" to 36" (84 cm to 91 cm)  No cutting required for 36" (91 cm) door
 J  36.5" to 42" (94 cm to 107 cm)  No cutting required for 42" (107 cm) door
 G  42.5" to 48" (110 cm to 122 cm)  No cutting required for 48" (122 cm) door

Manufacturer

Sargent

Series

PE80 Series

Model

PE8810-E

SKU

PE-8810-E

Product Type

Wide Stile Rim Exit Device

Function

Dummy-Function

Operation

Exit Only

Door Size

26"-32" Inch Door

Dogging

Hex Key Dogging

Handing

Reversible Non-Handed

Grade

Grade 1

ANSI Number

A156.3

UL Listing Type

Accident Hazard

Unit of Measure

Each

Origin

United States

BAA Qualified

Yes

Limited Warranty

10 Year Limited Warranty

Manufacturer

Sargent

Series

PE80 Series

Model

PE8810-E

Device Type

Rim Exit Device

Stile Type

Wide Stile

Function Type

Dummy-Function

Egress Operation

Exit Only

Minimum Door Width

26 in.

Maximum Door Width

32 in.

Dogging Type

Hex Key Dogging

Handing

Reversible Non-Handed

ANSI/BHMA Grade

Grade 1

ANSI/BHMA Standard

A156.3

UL Listing

Accident Hazard
