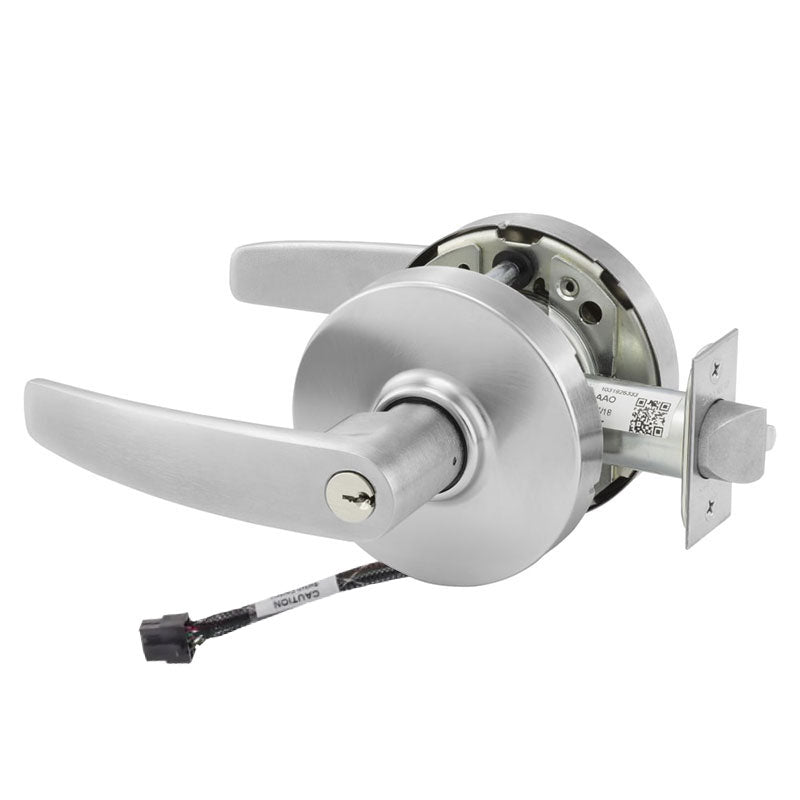

Sargent RX-10XG04-LB-12V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LB-12V-KD is a Grade 1 storeroom function cylindrical lock engineered for high-traffic commercial openings that demand both security and monitoring capability. Built on Sargent's rugged 10X Line platform, it combines a durable B lever with the L rose design and integrates a Request-to-Exit (RX) switch that signals when the inside lever is turned. Operating on 12V and supplied keyed random with two keys in the LA keyway, this lock keeps the outside lever locked at all times while allowing free egress from the secure side. With a 2-3/4" backset and 4-7/8" strike, it fits standard door prep and delivers dependable performance for storerooms, utility rooms, and controlled-access areas.

Features

• Storeroom function keeps the outside lever locked while allowing free exit from the inside at all times.
• Integrated Request-to-Exit (RX) switch reports use of the inside lever for access control monitoring.
• Grade 1 ANSI/BHMA certification for the highest level of commercial durability.
• B lever design paired with the L rose for a clean, ergonomic appearance.
• LA keyway supplied keyed random with two keys included.
• 12V operation for integration with electrified access control systems.
• 2-3/4" backset with a 4-7/8" strike to match standard commercial door prep.

Functional Details

The storeroom function (04) provides a secure opening where the outside lever remains locked and requires a key for entry, while the inside lever always allows free egress. The RX switch monitors the inside lever, sending a signal to the access control system when someone exits.

• Outside lever is always locked. Entrance by key. Auxiliary latch deadlocks latchbolt. Inside lever is always free for immediate egress.

Included Components

This lock ships with the cylindrical lock body, B lever trim, L rose, strike, mounting hardware, and two keys cut to a random keying configuration in the LA keyway.
