Sargent RX-10XG04-LB-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

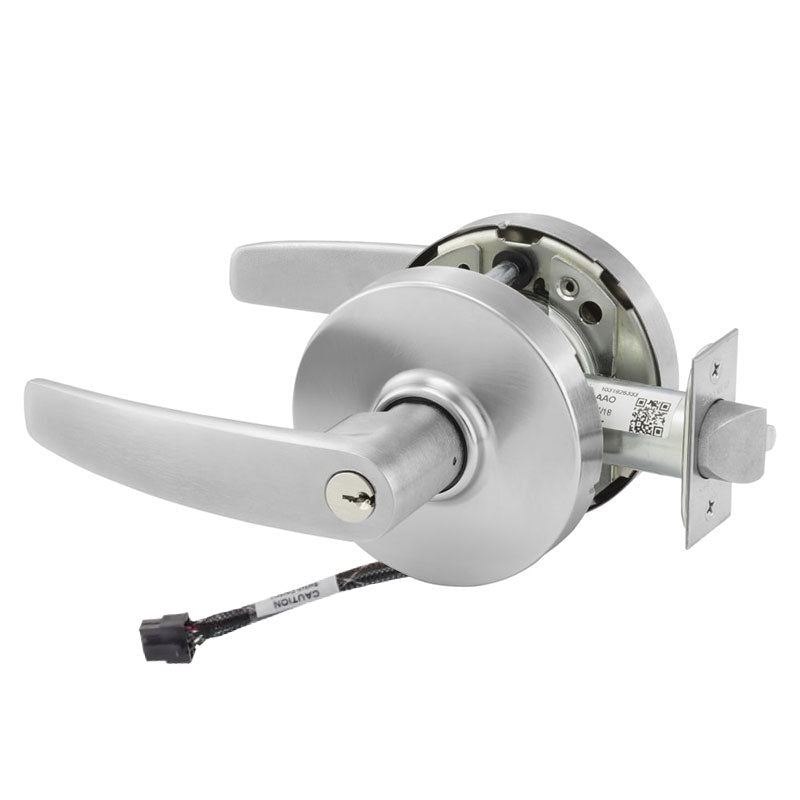

The Sargent RX-10XG04-LB-24V-KD is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand reliable security and monitoring. It combines a heavy-duty 10X Line chassis with an integrated Request-to-Exit (RX) switch, allowing the lock to signal access control and alarm systems when the lever is operated. Featuring the LB trim with its L rose and B lever, along with the LA keyway keyed random and two keys, this 24V lock delivers dependable performance where door status and controlled entry matter most. The storeroom function keeps the outside lever locked at all times, while the inside lever always allows free egress.

Features

• Storeroom function keeps the outside lever locked while the inside lever always allows free egress.
• Integrated Request-to-Exit (RX) switch communicates lever operation to access control and monitoring systems.
• Grade 1 rated for demanding commercial applications.
• Includes the LB trim with L rose and B lever design.
• 2-3/4" backset and 4-7/8" strike for standard commercial door prep.
• LA keyway keyed random supplied with two keys.
• 24V operating voltage for compatibility with electrified access systems.

Functional Details

The 10XG04 storeroom function provides secure, key-controlled entry from the outside while permitting unrestricted exit from the inside. The latch bolt is retracted by key from the outside or by the inside lever at all times, and the outside lever remains fixed.

• Outside lever is always fixed.
• Latchbolt operated by key outside or lever inside.
• Inside lever always active for immediate egress.
• Auxiliary latch deadlocks latchbolt when door is closed.
