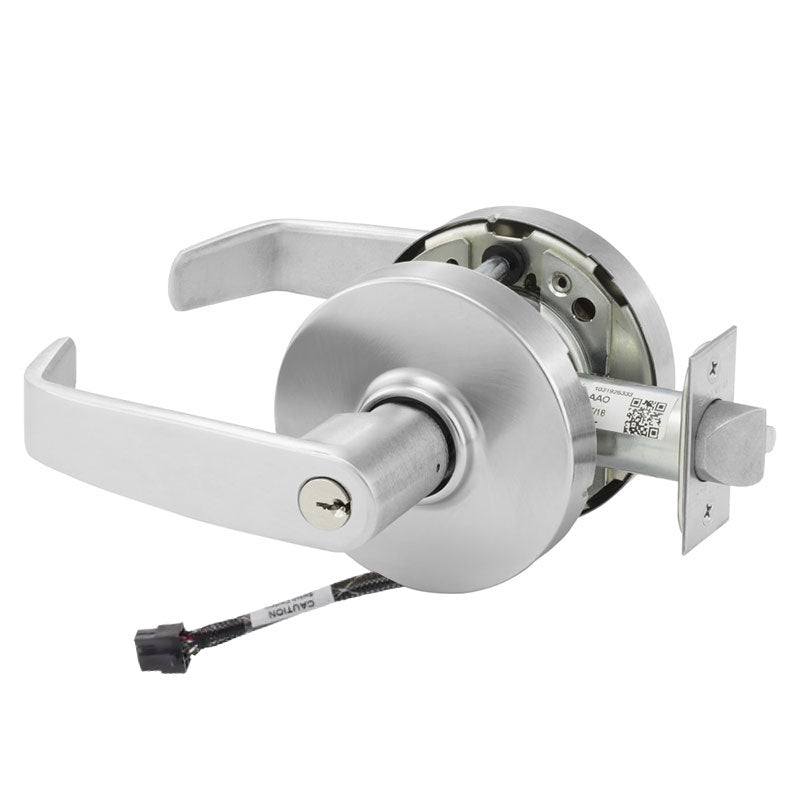

Sargent RX-10XG04-LL-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LL-24V-KD is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that require reliable security and electronic monitoring. Part of Sargent's 10X Line, this lock features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for access control and alarm integration. It comes with the L Lever and L Rose design, a 2-3/4" backset, and a 4-7/8" strike. Operating on 24V, it uses the LA keyway and ships keyed random with two keys. The storeroom function keeps the outside lever locked at all times, ensuring controlled access while allowing free egress.

Features

• Grade 1 cylindrical lever lock rated for heavy commercial use.
• Storeroom function keeps the outside lever locked while the inside lever always allows exit.
• Built-in Request to Exit (RX) switch for integration with access control systems.
• L Lever paired with L Rose for a clean, durable trim design.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• Operates on 24V for compatibility with electrified hardware setups.
• LA keyway, keyed random, and supplied with two keys.

Functional Details

The storeroom function (G04) keeps the outside lever fixed and locked at all times, requiring a key for entry. The inside lever is always free for immediate egress, while the RX switch reports lever activity to a connected monitoring or access control system.

• Outside lever is fixed. Entrance by key only. Key retracts latch. Inside lever always free for immediate egress.
