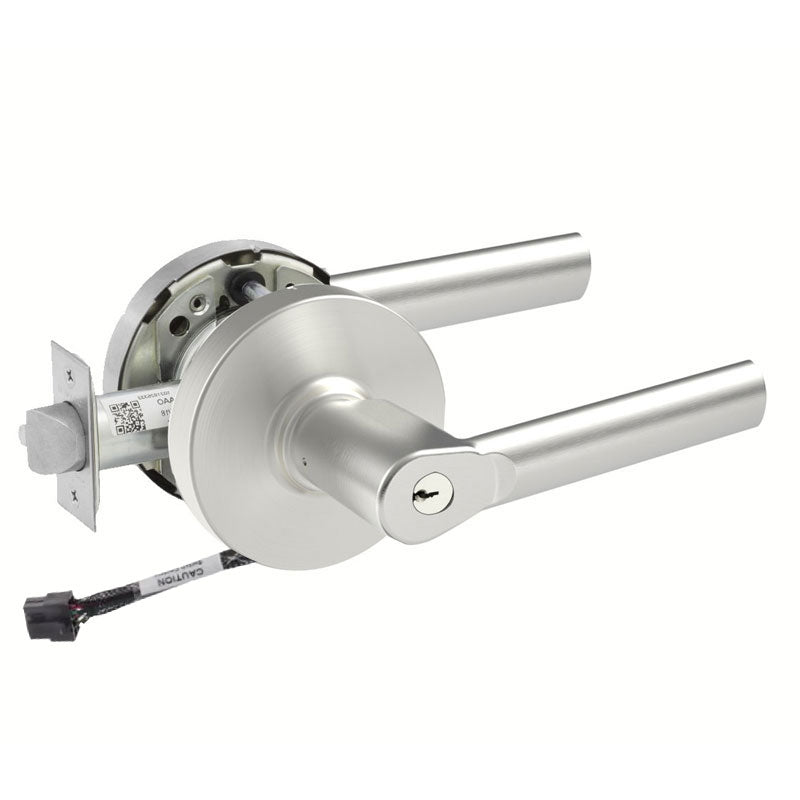

Sargent RX-10XG04-LMB-12V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMB-12V-KD is a Grade 1 storeroom function cylindrical lock built for demanding commercial openings that require access control and monitoring. It combines heavy-duty durability with a built-in Request to Exit (RX) switch, allowing the lock to signal an access control system whenever the inside lever is operated. This model features the L rose, MB lever design, and a 2-3/4" backset paired with a 4-7/8" strike. Keyed with the LA keyway and supplied keyed random with two keys, it delivers reliable security for storerooms, utility areas, and other spaces where the outside lever stays locked while free egress is always maintained.

Features

• Grade 1 cylindrical lever lock engineered for high-traffic commercial applications.
• Storeroom function keeps the outside lever locked at all times while the inside lever allows free egress.
• Integrated Request to Exit (RX) switch monitors inside lever operation for access control integration.
• Operates on 12V for compatibility with electrified door systems.
• L rose and MB lever trim offer a clean, durable design.
• LA keyway, keyed random with two keys included.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.

Functional Details

The storeroom function (04) keeps the outside lever fixed and locked, requiring a key for entry, while the inside lever always retracts the latch for immediate egress. The RX switch provides an electrical signal each time the inside lever is used, making it ideal for monitored openings tied into an access control system.

• Outside lever is always fixed.
• Latchbolt operated by key in outside lever or by inside lever.
• Inside lever always active for immediate egress.
• Auxiliary latchbolt deadlocks latchbolt.
