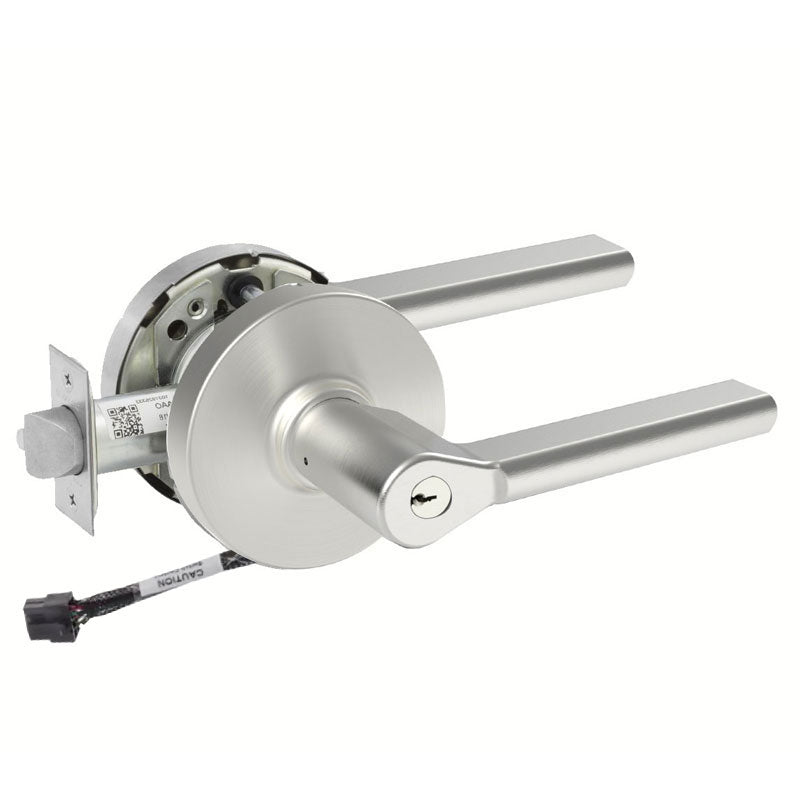

Sargent RX-10XG04-LMD-12V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMD-12V-12V-KD is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand both security and reliable access monitoring. Part of Sargent's proven 10X Line, this lockset combines a rugged L rose with the MD lever and features an integrated Request to Exit (RX) switch, allowing the lock to signal an access control or alarm system when the interior lever is operated. It ships with a 2-3/4" backset, a 4-7/8" ANSI strike, and the LA keyway keyed random with two keys. Operating on 12V, it's an ideal choice for stairwells, storerooms, and secured entries where continuous exit monitoring matters.

Features

• Grade 1 cylindrical lock engineered for durability in demanding commercial applications.
• Storeroom function keeps the outside lever locked at all times while allowing free egress from the inside.
• Built-in Request to Exit (RX) switch signals interior lever operation to access control systems.
• Operates on 12V for compatibility with a wide range of security setups.
• Supplied with the L rose and MD lever design.
• LA keyway keyed random, shipped with two keys.
• Includes a standard 2-3/4" backset and 4-7/8" ANSI strike.

Functional Details

The 04 storeroom function keeps the outside lever fixed and locked, requiring a key for entry, while the inside lever always allows free egress. The integrated RX switch monitors when the interior lever is turned, providing a signal that can be tied into building access control or alarm monitoring.

• Outside lever is fixed. Entrance by key only. Inside lever always free for immediate egress.

Included Components

This lockset arrives complete with the L rose, MD lever, 2-3/4" backset latch, 4-7/8" ANSI strike, LA keyway cylinder keyed random, and two keys.
