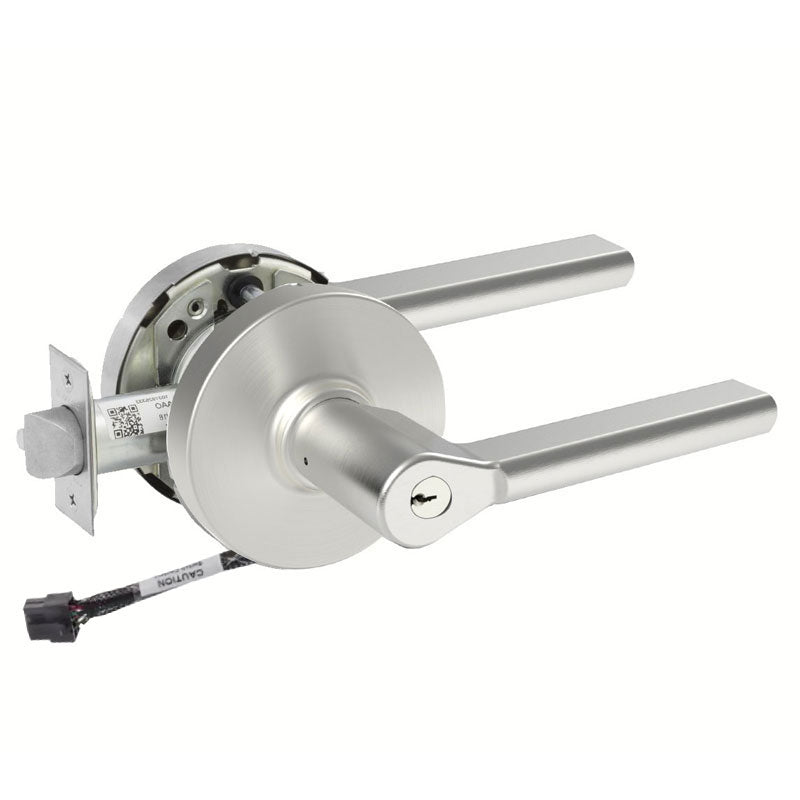

Sargent RX-10XG04-LMD-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMD-24V-KD is a Grade 1 storeroom function cylindrical lock built for demanding commercial applications where security and durability matter. This lockset features an integrated Request to Exit (RX) switch, allowing it to communicate with access control systems and signal when the interior lever is operated. It comes configured with the L Rose, MD Lever, a 2-3/4" backset, and a 4-7/8" strike, paired with an LA keyway and shipped keyed random with two keys. Operating at 24V, this lock delivers reliable performance for storerooms, utility spaces, and other high-traffic openings that require controlled, key-only entry from the outside.

Features

• Storeroom function keeps the outside lever locked at all times, with entry by key only.
• Integrated Request to Exit (RX) switch monitors interior lever operation for access control integration.
• Grade 1 certified for the highest level of commercial performance and durability.
• MD lever design with L rose trim offers a clean, modern appearance.
• LA keyway shipped keyed random with two keys included.
• Operates on 24V for compatibility with electrified hardware systems.

Functional Details

The storeroom function ensures the exterior lever remains locked continuously; a key is required for entry from the outside, while the inside lever always allows free egress. The Request to Exit switch signals the access control system whenever the interior lever is turned.

• Outside lever is always locked.
• Entrance by key only.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
