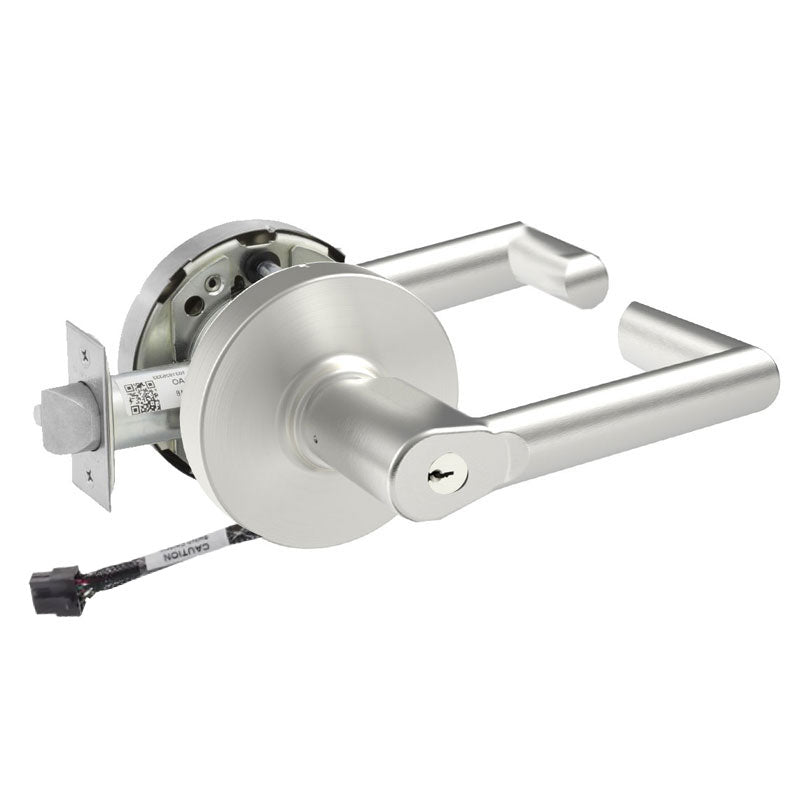

Sargent RX-10XG04-LMW-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMW-24V-KD is a Grade 1 storeroom function cylindrical lock built for demanding commercial applications where security and durability matter. It features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for access control and monitored openings. This model includes the LMW lever design with the L rose, a 2-3/4" backset, and a 4-7/8" ANSI strike. The LA keyway comes keyed random with two keys included. Operating on 24V, this lock combines rugged mechanical performance with electronic monitoring, delivering reliable service in schools, healthcare facilities, offices, and other high-traffic environments.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Storeroom function keeps the outside lever locked at all times, requiring a key for entry.
• Integrated Request to Exit (RX) switch monitors lever operation for access control.
• LMW lever paired with the L rose for a clean, modern appearance.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• LA keyway keyed random, supplied with two keys.
• 24V operating voltage for compatibility with electronic monitoring systems.

Functional Details

The storeroom function (G04) keeps the outside lever fixed in the locked position, so a key is always required to enter, while the inside lever allows free egress at all times. The Request to Exit switch reports when the inside lever is turned, enabling integration with alarm or access control systems.

• Outside lever is fixed. Entrance by key only.
• Inside lever is always free for immediate egress.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
