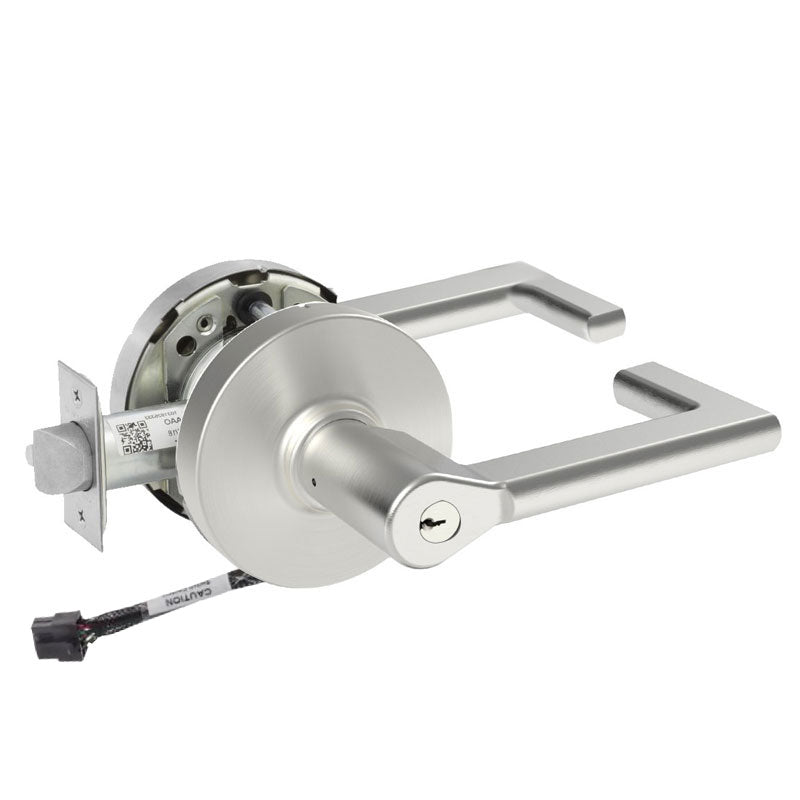

Sargent RX-10XG04-LND-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LND-24V-KD is a Grade 1 storeroom function cylindrical lock built for demanding commercial openings that require both durable security and integrated access monitoring. This lock combines the reliable 10X Line chassis with a Request to Exit (RX) switch, allowing it to communicate egress activity to an access control or alarm system. It features the LND design with the L rose and ND lever, a 2-3/4" backset, and a 4-7/8" strike. The lock ships keyed random with two keys cut to the LA keyway and operates on 24V. It's an ideal choice for storerooms, IT rooms, and other spaces where controlled entry and monitored exit are essential.

Features

• Storeroom function keeps the outside lever locked at all times, while the inside lever always allows free egress.
• Built-in Request to Exit (RX) switch signals when the inside lever is operated for integration with access control systems.
• Grade 1 certified construction for high-frequency, heavy-duty commercial use.
• LND trim configuration pairs the L rose with the contoured ND lever.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard commercial door prep.
• Supplied keyed random in the LA keyway with two keys included.
• Operates on a 24V electrical supply.

Functional Details

As a storeroom function (G04) lock, the outside lever remains locked and requires a key for entry, while the inside lever is always free for exit. The integrated Request to Exit switch monitors inside lever activity, enabling the opening to be tied into an electronic security system.

• Outside lever is always fixed (locked). Key retracts latch.
• Inside lever is always free for immediate egress.
• Latchbolt operated by key from outside or by inside lever.
