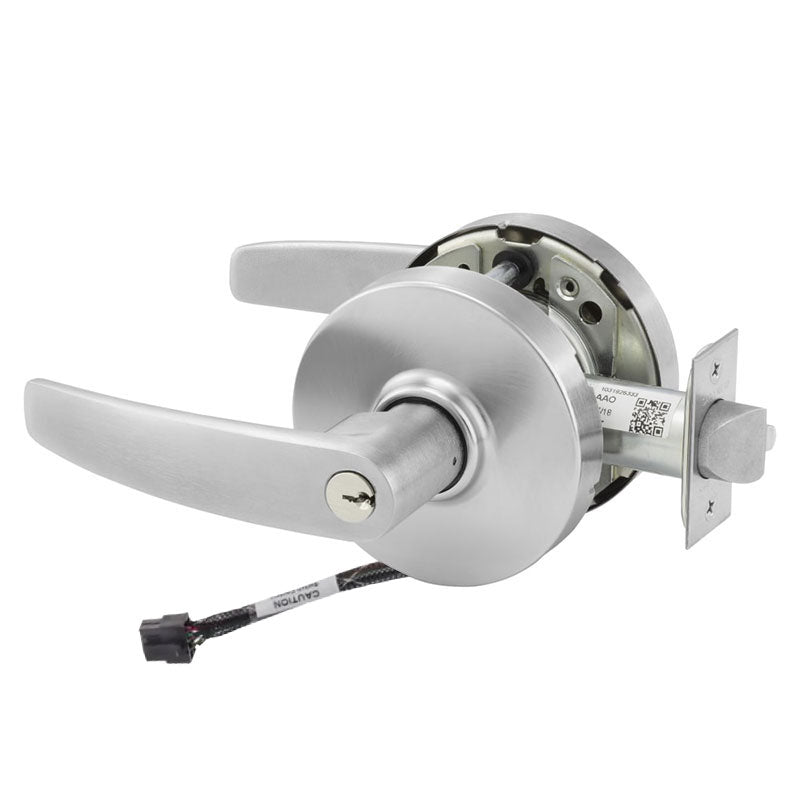

Sargent RX-10XG05-LB-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LB-12V-KD is a Grade 1 cylindrical lock built for commercial entrance and office applications where reliable access control and monitored egress are required. It combines the Entrance or Office function with a built-in Request-to-Exit (RX) switch, allowing the lock to signal an access control system when the interior lever is operated. Featuring the L rose and B lever design, a 2-3/4" backset, and a 4-7/8" strike, this lock is engineered for heavy-duty use in high-traffic openings. It comes keyed random with the LA keyway and ships with two keys, making it a dependable choice for schools, offices, and institutional buildings.

Features

• Entrance or Office function keeps the outside lever locked or unlocked by key while the inside lever is always free for immediate egress.
• Integrated Request-to-Exit switch provides signaling to access control and monitoring systems.
• Grade 1 rated for the highest level of commercial durability and performance.
• L rose and B lever styling for a clean, contemporary appearance.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike for broad door compatibility.
• LA keyway, keyed random, supplied with two operating keys.
• 12V operation for compatibility with access control power systems.

Functional Details

The Entrance or Office function (10G05) allows the outside lever to be locked or unlocked using a key. When locked, entry requires a key, but the inside lever always retains free egress. The integrated Request-to-Exit switch monitors interior lever use and communicates that activity to connected security or access control equipment.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• When locked, latchbolt is operated by key outside or by rotating inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
