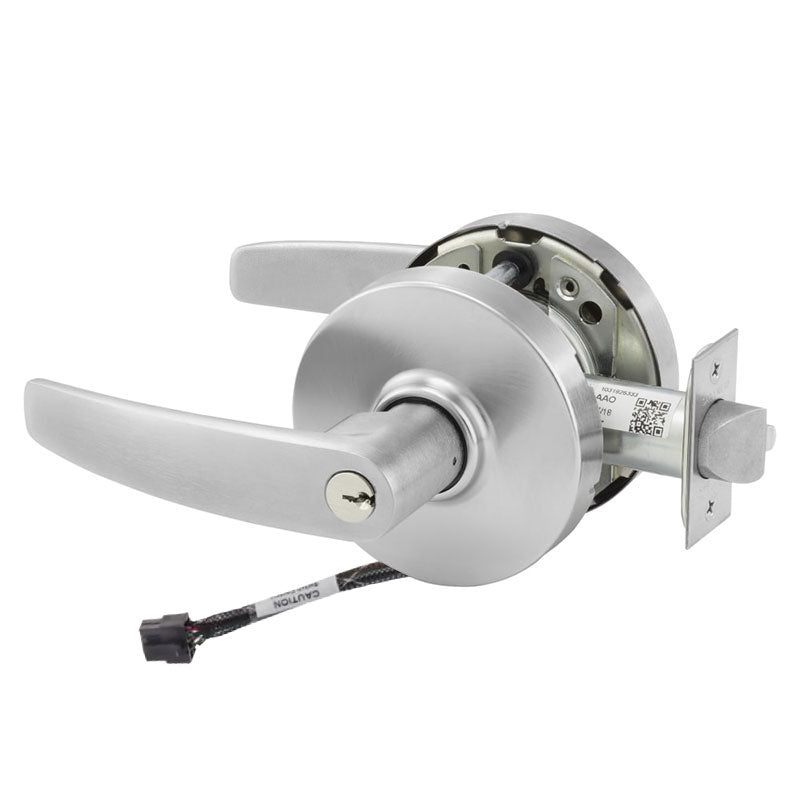

Sargent RX-10XG05-LB-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LB-24V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that need both dependable security and electronic monitoring. Configured for Entrance or Office function with an integrated Request-to-Exit (RX) switch, this lock signals access control systems when the inside lever is operated, making it ideal for doors that require exit monitoring. It features the LB lever design on an L rose, a 2-3/4" backset, and a 4-7/8" strike. The lock operates on 24V and ships keyed random with two keys in the LA keyway. Its heavy-duty construction meets ANSI/BHMA A156.2 standards for lasting performance.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial applications.
• Entrance or Office function provides flexible key-operated locking and unlocking.
• Integrated Request-to-Exit (RX) switch reports lever operation to access control systems.
• LB lever mounted on an L rose for a clean, durable trim profile.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.
• Operates on 24V DC for use with monitored electronic hardware.
• Supplied keyed random with two keys in the LA keyway.

Functional Details

The Entrance/Office function allows the outside lever to be locked or unlocked by key, while the inside lever always retracts the latch for free egress. The built-in Request-to-Exit switch activates when the inside lever is turned, sending a signal that a valid exit is occurring so the access control system can suppress alarms and log the event.

• Latchbolt operated by lever from either side except when outside lever is locked by key from inside.
• Rotating the inside lever activates the request-to-exit switch.
