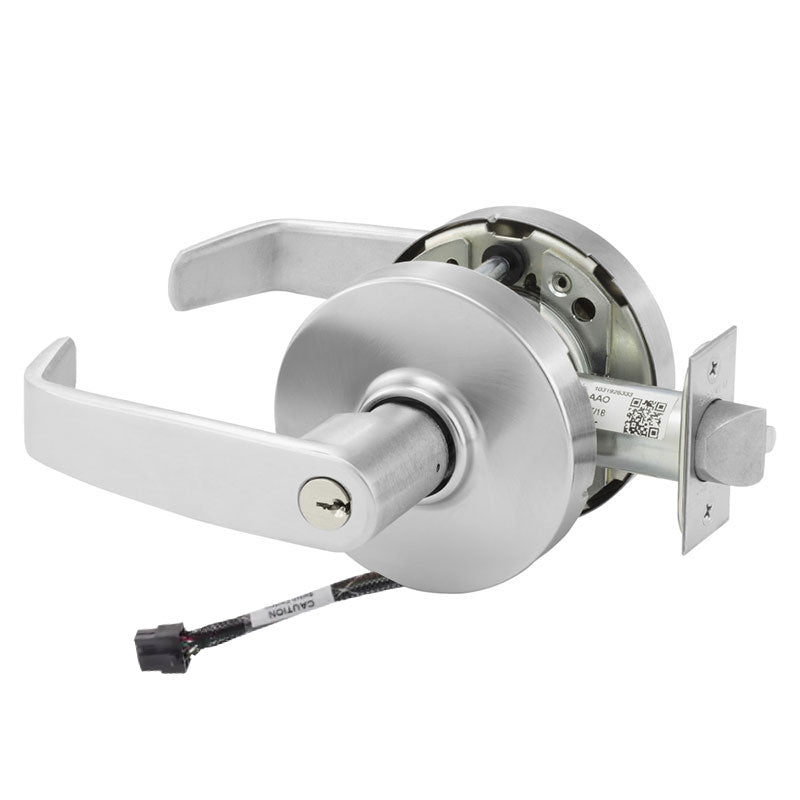

Sargent RX-10XG05-LL-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LL-24V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that require both secured access and monitored egress. Configured for Entrance or Office function, it combines dependable key control with an integrated Request to Exit (RX) switch that signals when the interior lever is operated. This model features the LL design with the L rose and L lever, a 2-3/4" backset, and a 4-7/8" ANSI strike. It ships keyed random with two keys using the LA keyway and operates on a 24V input. Ideal for offices, entrances, and access-controlled facilities where reliability and code compliance matter.

Features

• Grade 1 cylindrical lock designed for demanding commercial applications.
• Entrance or Office function provides flexible secured access and controlled egress.
• Integrated Request to Exit (RX) switch monitors interior lever operation.
• L rose and L lever design for a clean, durable trim profile.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• LA keyway, keyed random, supplied with two keys.
• 24V electrical input for integration with access control systems.

Functional Details

The RX (Request to Exit) feature uses a built-in switch that activates whenever the inside lever is turned, sending a signal to the access control or alarm system to indicate authorized egress. This allows free exit at all times while keeping the outside controlled by key.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Locking or unlocking outside lever controlled by key in outside lever.
• Inside lever always free for immediate egress.
