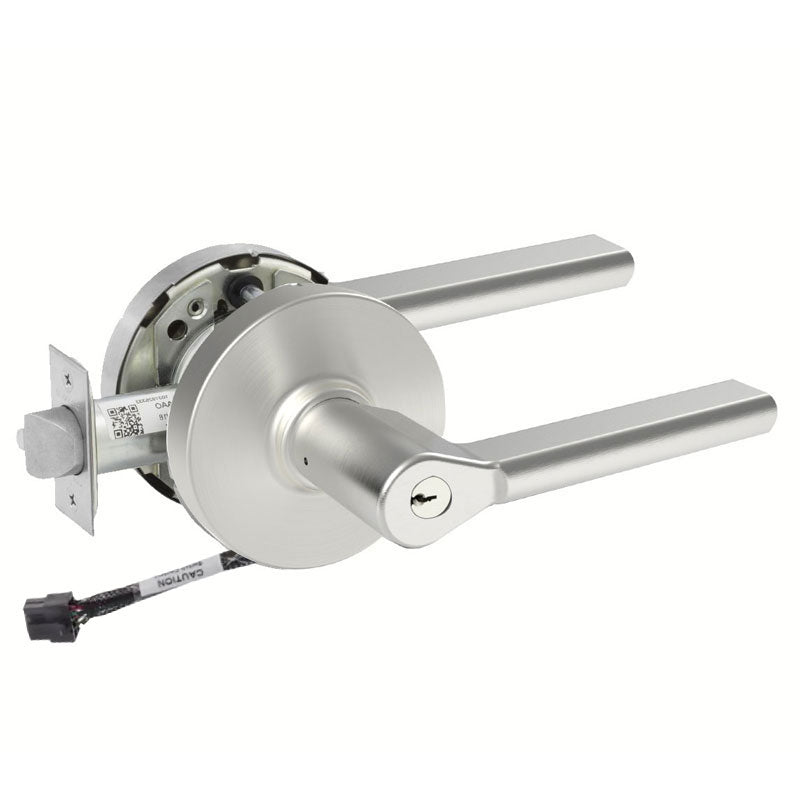

Sargent RX-10XG05-LMD-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LMD-12V-KD is a Grade 1 cylindrical lever lock built for demanding commercial openings that require reliable entrance or office function paired with electronic monitoring. Its integrated Request to Exit (RX) switch signals when the lever is operated, making it ideal for access control and security systems that track door usage. Featuring the durable LMD lever design, L rose, and a standard 2-3/4" backset, this lockset handles high-traffic environments with ease. It operates on 12V and ships keyed random with two keys in the LA keyway, delivering dependable performance where controlled access and exit reporting matter most.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or office function offering flexible everyday access control.
• Built-in Request to Exit (RX) switch for monitoring lever operation.
• LMD lever mounted on the L rose for a clean, ergonomic feel.
• Operates on 12V for compatibility with common access control power.
• LA keyway keyed random and supplied with two keys.
• Standard 2-3/4" backset with a 4-7/8" strike for wide door compatibility.

Functional Details

The entrance or office function allows the outside lever to be locked or unlocked by key, while the inside lever always retracts the latch for free egress. The Request to Exit switch reports when the interior lever is operated, integrating the lock with electronic security and monitoring systems.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• When outside is locked, latchbolt is retracted by key in outside lever or by rotating inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
