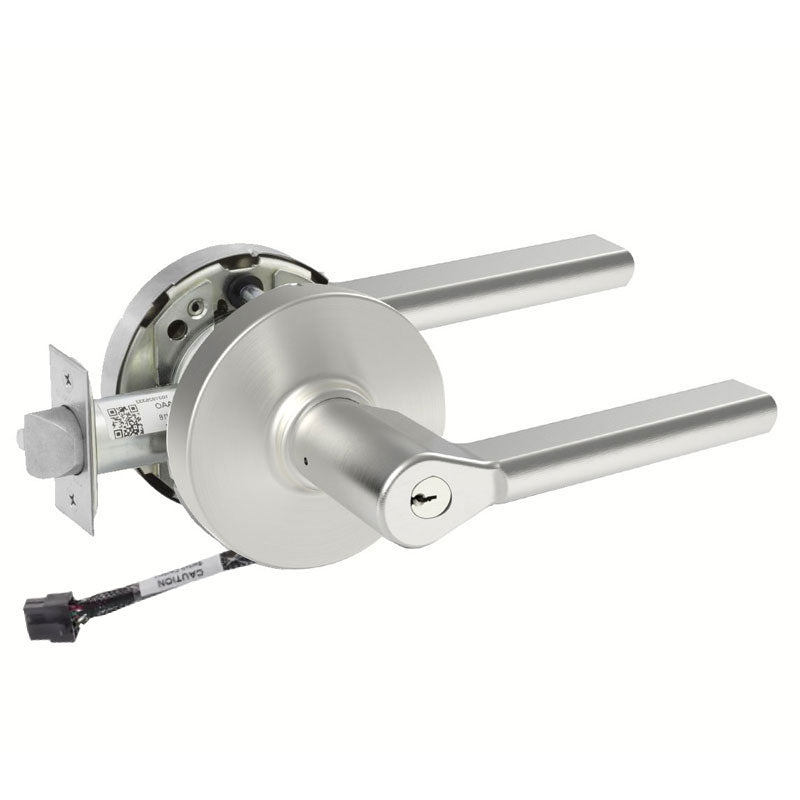

Sargent RX-10XG05-LMD-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LMD-24V-KD is a Grade 1 cylindrical lock built for entrance and office applications where security and access control matter. Part of Sargent's durable 10X Line, this lock combines a heavy-duty chassis with an integrated Request to Exit (RX) switch, allowing it to signal an access control system whenever the lever is operated for egress. It features the L rose and MD lever design, a 2-3/4" backset, a 4-7/8" ANSI strike, and an LA keyway supplied keyed random with two keys. Operating on 24V power, this lock is a dependable choice for commercial doors requiring monitored, code-compliant hardware.

Features

• Grade 1 cylindrical lever lock engineered for high-traffic commercial openings.
• Entrance or Office function (05) allows locking and unlocking from the inside lever or key.
• Integrated Request to Exit (RX) switch signals egress to access control systems.
• L rose and MD lever styling for a clean, durable finish.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.
• LA keyway keyed random, supplied with two keys.
• Operates on 24V DC power.

Functional Details

The 05 Entrance or Office function lets the inside lever or key control the locking condition of the outside lever, while the built-in Request to Exit switch monitors lever movement to communicate egress activity to a connected access control system.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Outside lever locked and unlocked by key from outside.
• Turn/push button in inside lever locks or unlocks outside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
