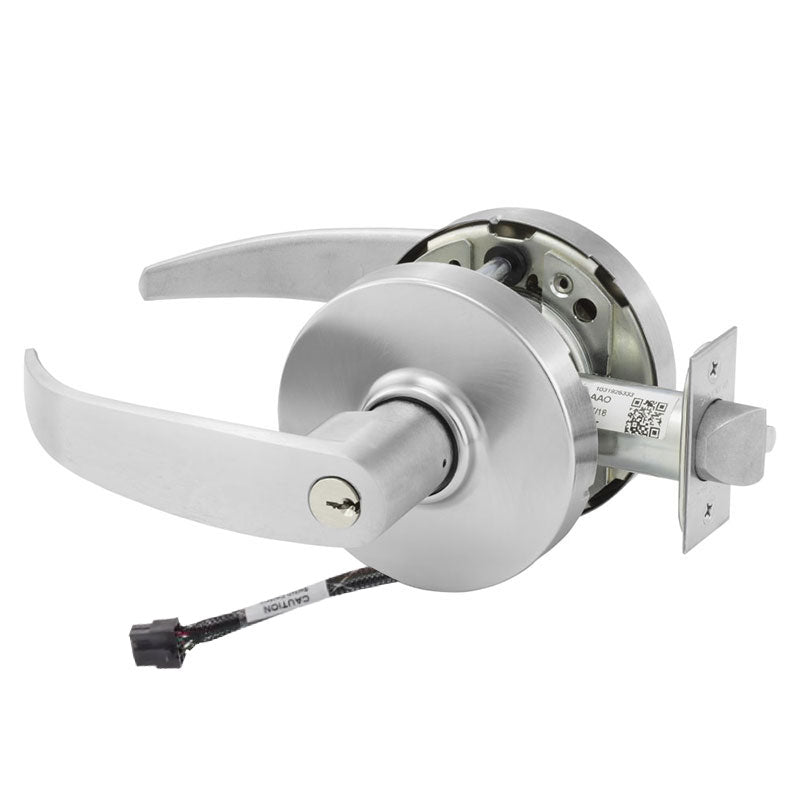

Sargent RX-10XG05-LP-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LP-12V-KD is a Grade 1 cylindrical lever lock built for entrance or office applications where reliable access control and monitored egress matter. This lockset combines a proven G05 entrance/office function with an integrated Request to Exit (RX) switch, allowing the mechanism to signal when the interior lever is operated. Featuring the durable LP lever with L rose trim, a 2-3/4" backset, and a 4-7/8" ANSI strike, it delivers dependable performance in high-traffic commercial openings. The unit comes keyed random with two keys cut to the LA keyway and operates on 12V, making it suited for access-controlled entry points that require electrical monitoring.

Features

• Grade 1 cylindrical lever lock engineered for demanding commercial use.
• Entrance or Office (G05) function for flexible locking and access control.
• Built-in Request to Exit (RX) switch to signal interior lever operation.
• LP lever with L rose provides a clean, durable ANSI-compliant trim.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.
• Keyed random with two keys in the LA keyway.
• Operates on 12V for integration with access control systems.

Functional Details

The G05 Entrance or Office function allows the outside lever to be locked or unlocked, while the Request to Exit feature monitors interior lever activation. When the inside lever is turned, the RX switch signals the access control system that egress has occurred.

• Latchbolt operated by lever from either side except when outside lever is locked by turn/push button inside.
• When outside lever is locked, latchbolt is operated by key outside or by rotating inside lever.
• Turn/push button locking: pushing and turning button locks outside lever, requiring use of key until button is manually unlocked.
