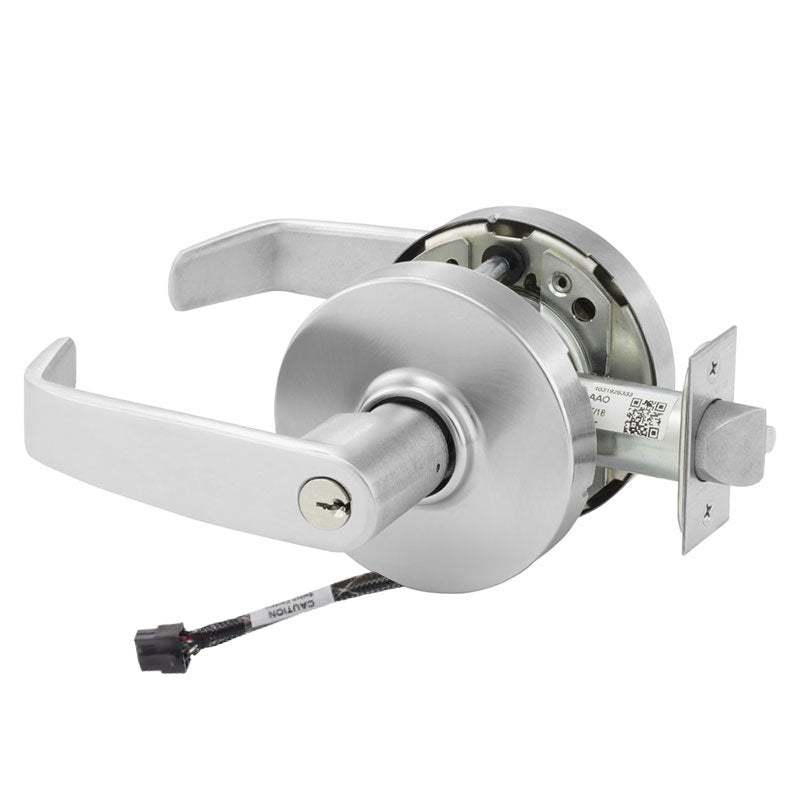

Sargent RX-10XG37-LL-12V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LL-12V-KD is a Grade 1 classroom function cylindrical lock built for heavy-duty commercial and institutional openings where security and reliable access control matter. It combines the durable 10X Line chassis with an integrated request-to-exit (RX) switch, allowing the lock to signal an access control system when the lever is rotated from the inside. This unit features the LL trim configuration with an L rose and L lever, a 2-3/4" backset, and a 4-7/8" strike. The 12V wiring supports low-voltage monitoring, while the LA keyway comes keyed random with two keys for immediate use in schools, offices, and other secured facilities.

Features

• Grade 1 cylindrical lock engineered for high-traffic commercial and institutional use.
• Classroom function locks or unlocks the outside lever by key, while the inside lever always allows free egress.
• Built-in request-to-exit (RX) switch signals access control systems when the inside lever is turned.
• LL trim with L rose and L lever for a clean, contemporary appearance.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• LA keyway keyed random and supplied with two keys.
• 12V low-voltage operation for integration with electronic monitoring.

Functional Details

The classroom function allows an instructor to control access from the outside using a key, without ever locking anyone inside the room. The inside lever provides continuous free egress, and the RX switch reports lever movement back to a connected system.

• Outside lever is locked or unlocked by key.
• Inside lever is always free for immediate egress.
• Latchbolt operated by lever from either side except when outside is locked by key.
