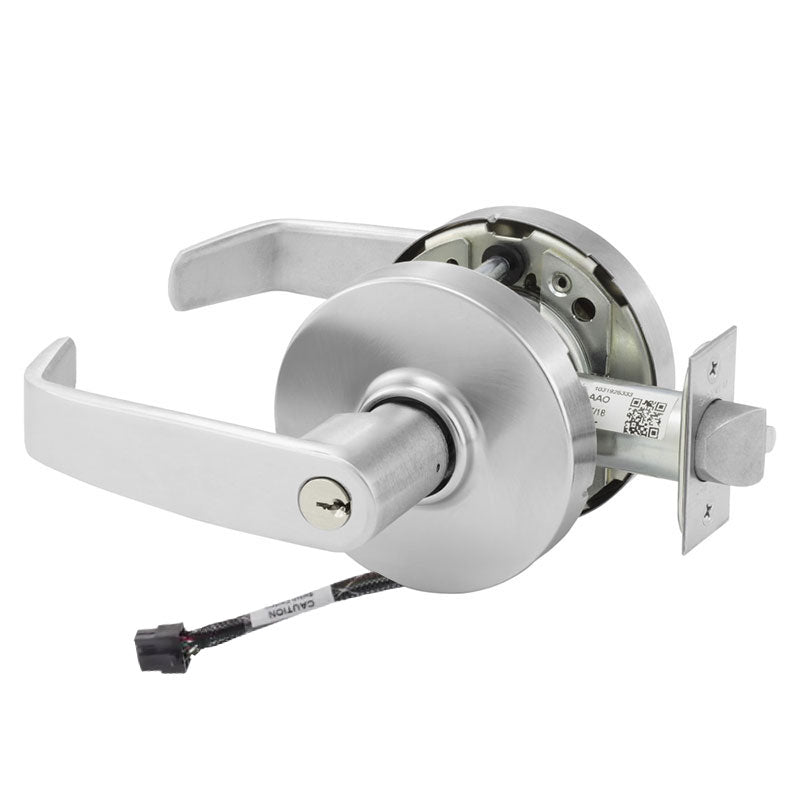

Sargent RX-10XG37-LL-24V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LL-24V-KD is a Grade 1 cylindrical lever lock built for demanding classroom applications where security and reliable access control matter. This model features Classroom function, allowing the outside lever to be locked or unlocked by key while the inside lever always permits free egress. Its integrated Request-to-Exit (RX) switch signals access control systems when the interior lever is operated, making it ideal for monitored openings. Equipped with the durable L rose and L lever, a 2-3/4" backset, and a 4-7/8" ANSI strike, this lock ships keyed random with two keys on the LA keyway. The 24V configuration supports electrified integration for modern facilities.

Features

• Grade 1 cylindrical lever lock engineered for heavy-duty commercial and institutional use.
• Classroom function keeps the inside lever free for egress at all times while the outside lever is controlled by key.
• Built-in Request-to-Exit (RX) switch communicates lever operation to access control systems.
• L rose and L lever design provides a clean, durable, and ADA-compliant trim.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep compatibility.
• Ships keyed random on the LA keyway with two keys included.
• 24V electrified operation supports integration with electronic access control.

Functional Details

The Classroom function lets an authorized user lock or unlock the outside lever using a key, while the inside lever always retracts the latch to allow immediate exit. The Request-to-Exit switch monitors interior lever activity for connection to a building's access control or alarm system.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Latchbolt retracted by lever from either side except when outside is locked by key.
