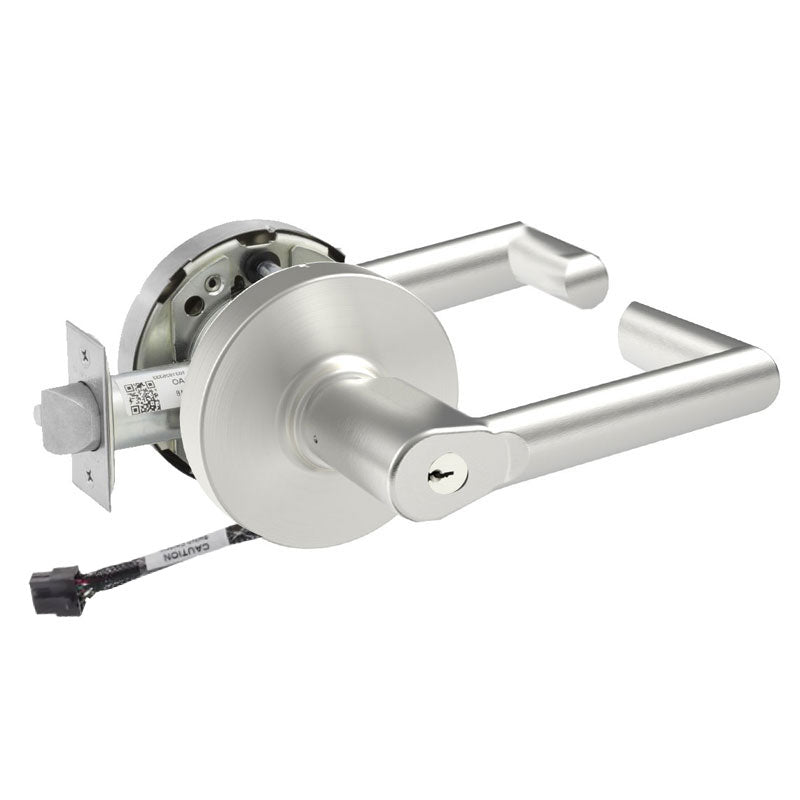

Sargent RX-10XG37-LMW-24V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LMW-24V-KD is a Grade 1 classroom function cylindrical lock built for high-traffic commercial and institutional openings. It combines rugged mechanical durability with an integrated Request to Exit (RX) switch, allowing the lock to signal an access control system when the lever is operated from the inside. Featuring the LMW lever design, L rose, and a 2-3/4" backset, this lockset accepts the LA keyway and ships keyed random with two keys. Its 24V configuration makes it suitable for electrified security applications where monitoring and access control integration are required. Ideal for schools, offices, and healthcare facilities demanding dependable, code-compliant hardware.

Features

• Classroom function allows the outside lever to be locked or unlocked by key, while the inside lever always permits free egress.
• Integrated Request to Exit (RX) switch signals access control systems when the interior lever is used.
• Grade 1 rated for the highest level of commercial durability and performance.
• LMW lever paired with the L rose for a clean, ADA-compliant appearance.
• LA keyway, keyed random, supplied with two keys.
• 24V electrified operation for integration with electronic security systems.
• Standard 2-3/4" backset with a 4-7/8" strike for common door prep.

Functional Details

The classroom function provides secure control at the opening while maintaining safe, uninterrupted egress. The outside lever is locked and unlocked only by key, and the inside lever is always free for exit. The RX switch reports lever activation to the connected access control or monitoring system.

• Outside lever locked or unlocked by key.
• Inside lever always unlocked (free egress) for immediate exit.
• Latchbolt operated by lever from either side except when outside is locked by key.
