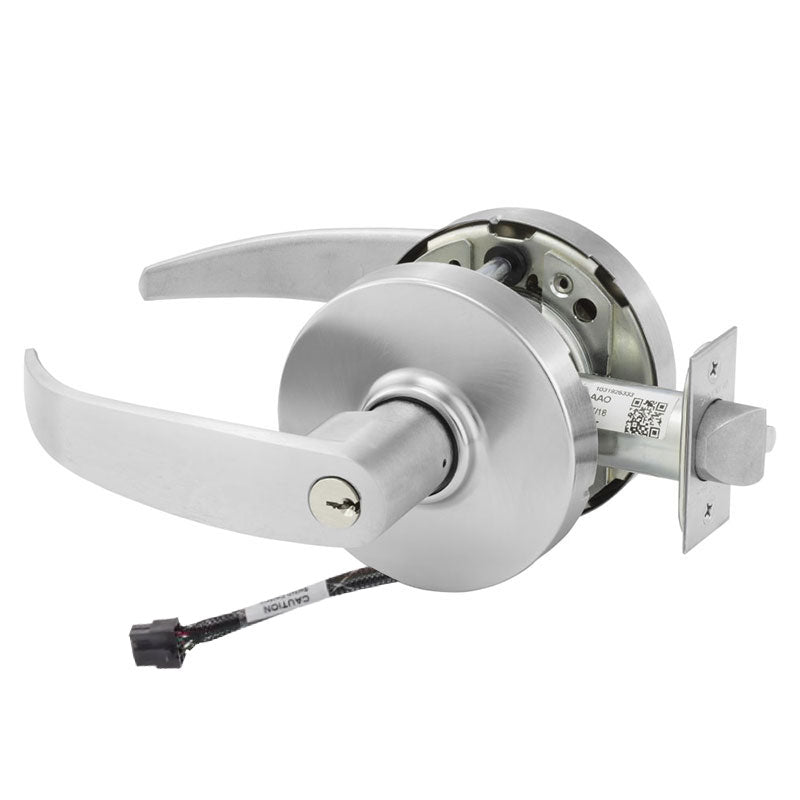

Sargent RX-10XG37-LP-12V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LP-12V-KD is a Grade 1 classroom function cylindrical lock built for demanding commercial and institutional openings. It combines dependable mechanical locking with an integrated Request to Exit (RX) switch, allowing the lock to signal an access control system when the interior lever is operated. Featuring the LP lever with L rose trim, a 2-3/4" backset, and a 4-7/8" strike, this unit is engineered for heavy daily use in schools, offices, and healthcare facilities. It ships with an LA keyway cylinder keyed random and includes two keys, along with 12-volt monitoring capability for reliable electronic integration.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial applications.
• Classroom function allows locking and unlocking of the outside lever by key while the inside lever always retracts the latch.
• Built-in Request to Exit (RX) switch signals egress to an access control or monitoring system.
• 12-volt operation supports integration with electronic security systems.
• LP lever paired with the L rose for a clean, durable trim design.
• LA keyway cylinder supplied keyed random with two keys.
• 2-3/4" backset and 4-7/8" ANSI strike for standard door prep.

Functional Details

The classroom function (G37) lets an instructor secure the room from the corridor side using a key, while the inside lever remains free at all times for immediate egress. The integrated RX switch monitors interior lever movement and reports exit activity back to the connected system.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
