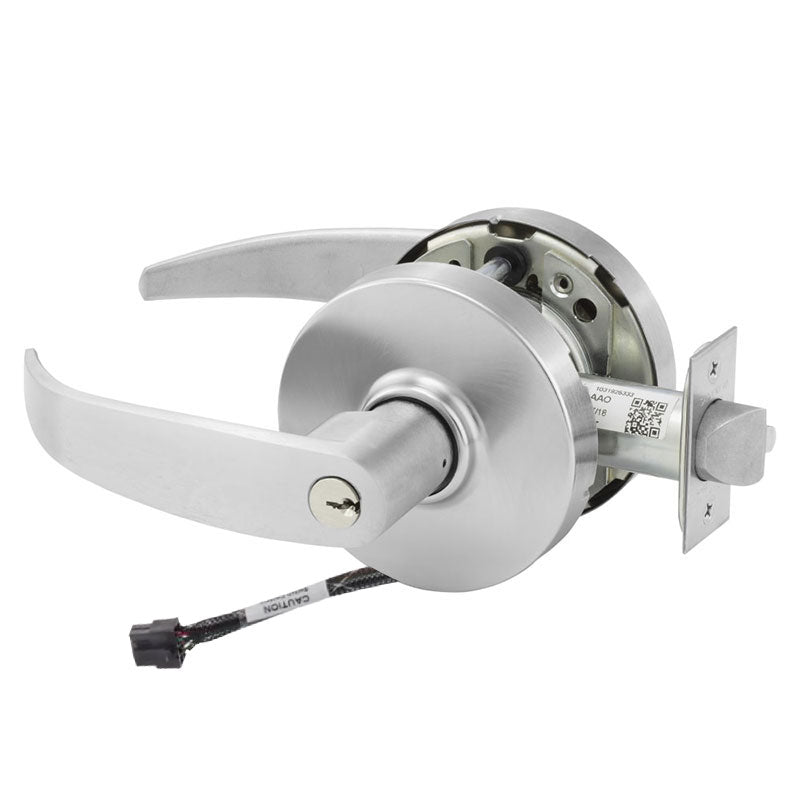

Sargent RX-10XG37-LP-24V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LP-24V-KD is a Grade 1 classroom function cylindrical lock built for high-traffic openings that demand both security and reliable access control. This lock pairs the durable 10X Line chassis with an integrated Request-to-Exit (RX) switch, allowing it to signal an access control system when the lever is operated from the inside. It features the LP lever design on an L rose, a 2-3/4" backset, and a 4-7/8" strike, and comes keyed random with two keys in the LA keyway. Operating on 24V, it delivers dependable classroom control where the outside lever is locked or unlocked by key while the inside lever always allows free egress.

Features

• Classroom function keeps the outside lever locked or unlocked by key while the inside lever remains free for egress at all times.
• Integrated Request-to-Exit (RX) switch signals an access control system when the inside lever is turned.
• Grade 1 cylindrical construction rated for heavy-duty commercial use.
• LP lever mounted on the L rose for a clean, ergonomic feel.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike for common commercial door prep.
• Operates on 24V DC for compatibility with electrified access systems.
• Supplied with the LA keyway, keyed random, and includes two keys.

Functional Details

The classroom function allows an instructor to secure a room from the outside using a key, without ever restricting exit from the inside. The RX switch monitors inside lever movement and reports egress to a connected access control or monitoring system.

• Latchbolt operated by lever from either side unless outside lever is locked by key.
• Outside lever locked and unlocked by key.
• Inside lever always free for immediate egress.
