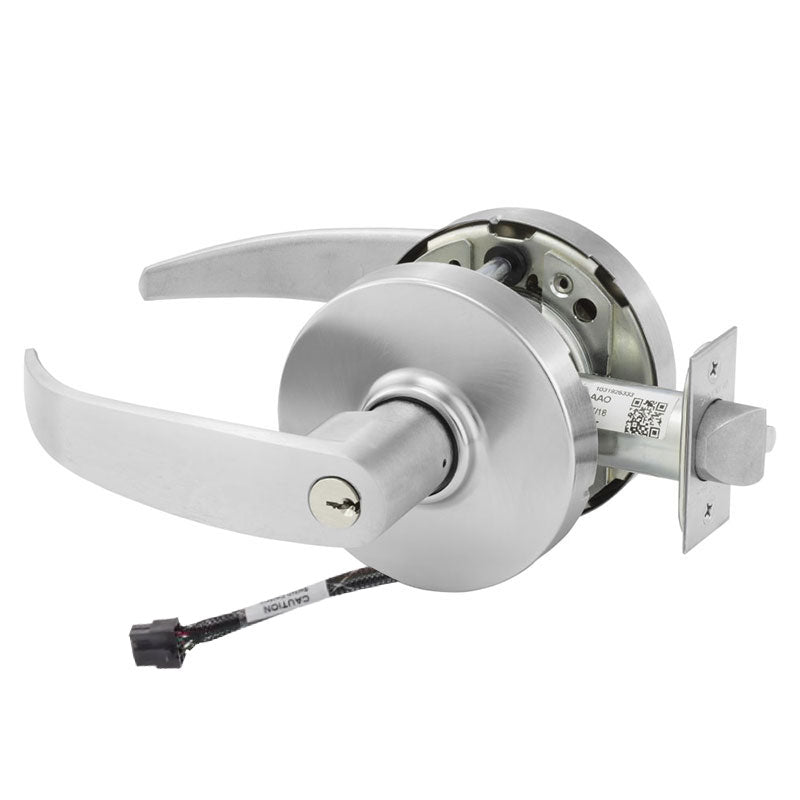

Sargent RX-10XG71-LP Fail Secure Cylindrical Electromechanical Lock - Request to Exit, LA Keyway, L Rose, P Lever, Grade 1

  • SKU: RX10XG71LPUS26D

Sargent RX-10XG71-LP Fail Secure Cylindrical Electromechanical Lock - Request to Exit, LA Keyway, L Rose, P Lever, Grade 1

  • SKU: RX10XG71LPUS26D
Sale price$885.56/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)
Visa Mastercard American Express Discover Shop Pay Apple Pay

Sargent RX-10XG71-LP Cylindrical Electromechanical Lever Lockset, Fail Secure, Request to Exit,  LA Keyway Keyed Random, [2] Keys, Field Reversible, L Rose,  P Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent RX-10XG71-LP from Sargent's 10 Line locks is a Grade 1 Heavy Duty, Electromechanical Cylindrical Lever Lock with a Fail Secure - Power Off Locks Lever Function, and Request to Exit Feature. This lock comes standard with an LA Keyway, Keyed Randomly, 2 change keys per lock, an L Rose, a P Lever, and works with12VDC or 24VDC voltage. Sargent RX-10XG71-LP Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG71 and 10XG71 Functions

Sargent RX-10XG71-LB Features:

  • 71 - Fail Secure Function
    - Power Off Unlocks Lever
    - Inside lever is always free
    - Latchbolt retracted by key outside when locked electrically
    - Guardbolt deadlocks latch bolt
  • Backset-2-3/4"
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip

RX- Monitoring of Inside Lever

  • Patent Pending design
  • Non-Contact Switch
  • Bidirectional lever rotation
  • Non-handed design
  • Internal switch offers N/O & N/C
  • Modular wire harness with ElectroLynx ® 8-pin connector

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.



  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems




    Grade 1



    Unit of Measure


    Base Material

    Brass or Bronze

    BAA Qualified


    Limited Warranty

    7 Years

    Fire Rated

    3 Hours {A}


    Function 71-Electromechanical Fail Secure
    Rose/Escutcheon Design L - Rose
    Lever P Lever
    Cylinder Type Conventional Cylinder,
    Num Pins 6
    Key(s) Yes
    Number of Keys 2
    Hand Non Handed
    Door Thickness 1-3/4" to 2"
    Latch Number 10-3192
    Latch Type Dead Latch (Guarded)
    Latch Backset Dim 2-3/4"
    Lock Face Size 2-1/4" X 1-1/8"
    Bolt Projection 1/2"
    Strike Number 808
    Strike Type ASA
    Strike Height 4-7/8"
    Strike Width 1-1/4"
    Screws Combination
    Power Hard Wired
    Operating Voltage 12VDC
    Amp Draw 500mA
    Switch Type RX
    Product Type Electric Cylindrical Lock
