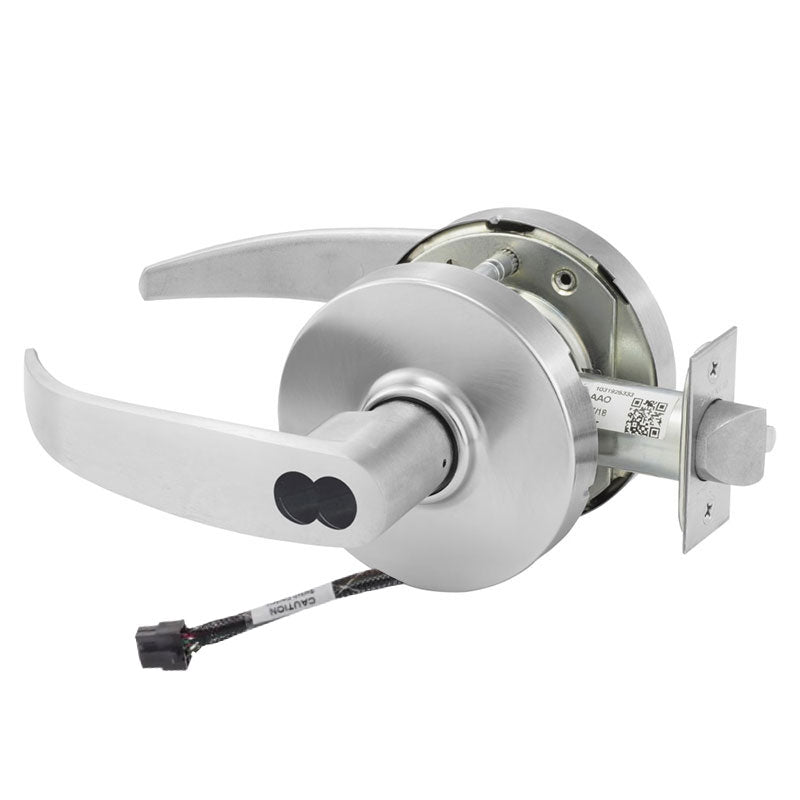

Sargent RX-70-10XG71-LP Fail Secure Cylindrical Electromechanical Lock - Request to Exit, SFIC Less Core, L Rose, P Lever, Grade 1

  • SKU: RX7010XG71LPUS26D

Sargent RX-70-10XG71-LP Fail Secure Cylindrical Electromechanical Lock - Request to Exit, SFIC Less Core, L Rose, P Lever, Grade 1

  • SKU: RX7010XG71LPUS26D
Sale price$885.56/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)
Visa Mastercard American Express Discover Shop Pay Apple Pay

Sargent RX-70-10XG71-LND-SFIC Cylindrical Electromechanical Lever Lockset, Fail Secure, Request to Exit, SFIC Less Core, Field Reversible, L Rose, B Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent RX-70-10XG71-LP is a Cylindrical Electromechanical Lock with a Fail Secure Function, enabling the outside lever to lock during a power failure and has a Request to Exit Feature. The 70 Option is 70 SFIC Small Format Interchangeable core, less core. It features an L-shaped rose, a P-shaped lever, a 2-3/4" backset, and a 4-7/8" strike, and is available in voltage options of 12VDC or 24VDC. Sargent RX-70-10XG71-LP Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG71 and 10XG71 Functions

Key Features:

  • 71 - Fail Secure Function
    - Power Off Unlocks Lever
    - Inside lever is always free
    - Latchbolt retracted by key outside when locked electrically
    - Guardbolt deadlocks latch bolt
  • For doors -1-3/4" thick adjusts to 2"
  • Backset-2-3/4"
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw

RX- Monitoring of Inside Lever

  • Patent Pending design
  • Non-Contact Switch
  • Bidirectional lever rotation
  • Non-handed design
  • The internal switch offers N/O & N/C
  • Modular wire harness with ElectroLynx ® 8-pin connector
  • Available functions: 04, 05, 15, 37, 70 & 71


10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.



Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems

    Manufacturer

    Sargent

    Grade

    Grade 1

    Origin

    USA

    Unit of Measure

    Each

    Base Material

    Brass or Bronze

    BAA Qualified

    Yes

    Limited Warranty

    7 Years

    Fire Rated

    3 Hours {A}




    Function 71-Electromechanical Fail Secure
    Rose/Escutcheon Design L - Rose
    Lever P Lever
    Cylinder Type SFIC
    Hand Non Handed
    Door Thickness 1-3/4" to 2"
    Latch Number 10-3192
    Latch Type Dead Latch (Guarded)
    Latch Backset Dim 2-3/4"
    Lock Face Size 2-1/4" X 1-1/8"
    Bolt Projection 1/2"
    Strike Number 808
    Strike Type ASA
    Strike Height 4-7/8"
    Strike Width 1-1/4"
    Screws Combination
    Power Hard Wired
    Operating Voltage 12VDC
    Amp Draw 500mA
    Switch Type RX
    Product Type Electric Cylindrical Lock
