Features

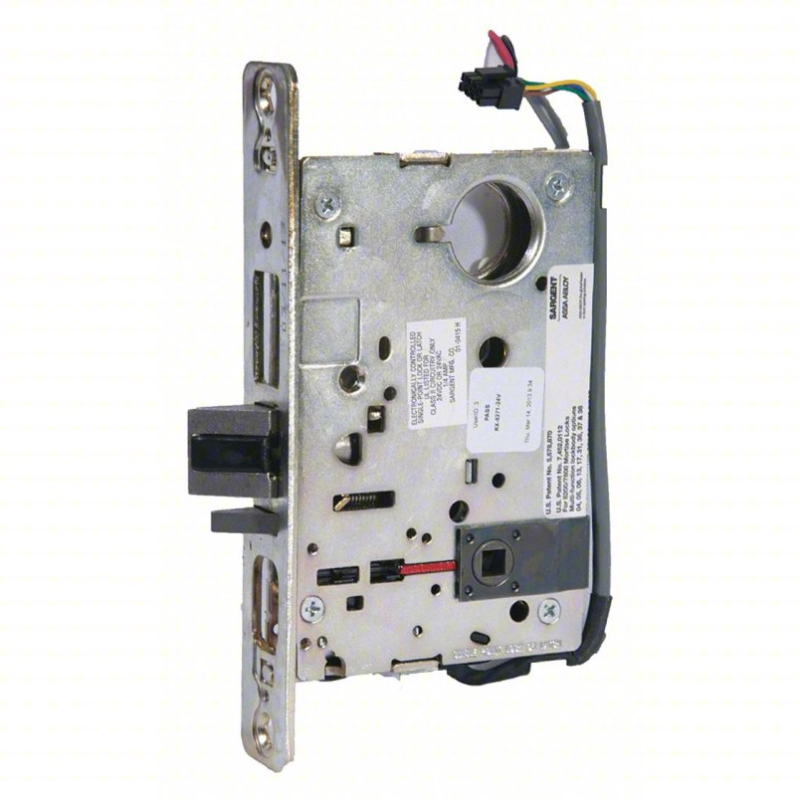

Lock body only configuration allows use with compatible trim and cylinders already specified for the opening.
Electro mechanical fail safe function unlocks when power is interrupted.
Double cylinder function provides keyed operation from both sides.
Request to Exit feature supports monitoring and access control integration.
24VDC operation is specified for low-voltage electrified hardware systems.
Grade 1 construction is built for heavy-duty commercial use.
Field Reversible handing allows the lock body to be adjusted for door handing in the field.
Functional Details
This electro mechanical fail safe mortise lock is designed so the locked condition depends on power being applied. In a fail safe setup, loss of power releases the lock, which is commonly used on openings that require unlocked egress during a power interruption. The RX request-to-exit feature adds internal switch monitoring to signal egress activity for access control and security system coordination.
72 function — Power ON, locks both levers
Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
Key on either side retracts latchbolt
Lever from either side retracts latchbolt, except when levers are locked
Both levers can only be locked & unlocked electronically
Levers can not be locked separately, only together
Auxiliary deadlatch
Included Components
This product is supplied as the lock body only. Trim, cylinders, strikes, and other door hardware components are specified separately based on the opening requirements and compatible 8200 Series mortise lock configurations.
Manufacturer |
Sargent |
|---|---|
Series |
8200 Series |
SKU |
RX-8272-24V |
Product Type |
Lock Body Only Electro Mechanical Mortise Lock |
Function |
Fail Safe Function |
Cylinder Type |
Double Cylinder |
Special Feature |
Request to Exit |
Voltage |
24V |
Grade |
ANSI/BHMA Grade 1 |
Handing |
Field Reversible |
ANSI Number |
F04 |
UL Listing Type |
UL listed |
Unit of Measure |
Each |
Origin |
Made in USA |
BAA Qualified |
Yes |
Limited Warranty |
10 Year Limited Warranty |
Series |
8200 |
|---|---|
Function Number |
8272 |
Electrification |
RX |
Operating Voltage |
24VDC |
Lock Type |
Mortise |
Function Type |
Fail Safe |
Cylinder Configuration |
Double Cylinder |
Monitoring |
Request to Exit |
Handing |
Field Reversible |
Grade |
1 |
Door Thickness |
1-3/4" standard |
Backset |
2-3/4" standard |
Case Depth |
4-1/8" |
Case Height |
6" |
Front |
1-1/4" x 8" |
