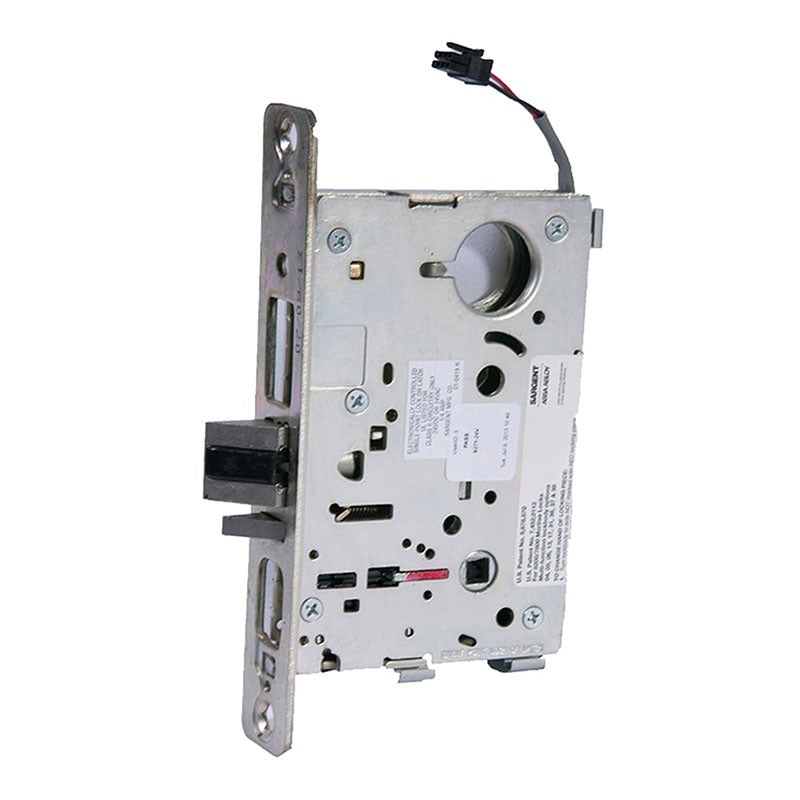

Sargent RX-8273-12V-US26D Lock Body Only, Electro Mechanical Fail Secure Function, Double Cylinder, Request to Exit, 12VDC, Satin Chrome Finish
The Sargent RX-8273-12V-US26D Lock Body is designed for use with the fail secure function and is equipped with a double cylinder. This lock body also includes a request to exit feature and has a satin chrome finish. It operates on 12VDC power.
73 Electric (Fail Safe)
73 function — Power ON, unlocks both levers
Specify voltage: 12VDC
Key outside retracts latch bolt
The lever outside retracts latchbolt, except when locked
Lever outside can only be locked electronically
Lever inside always retracts latchbolt
Auxiliary deadlatch
RX- option: Request-to-Exit or Enter Signaling Switch
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
Available in all functions with non rigid levers
Not available for the following options: 1-, 3-, 74-
