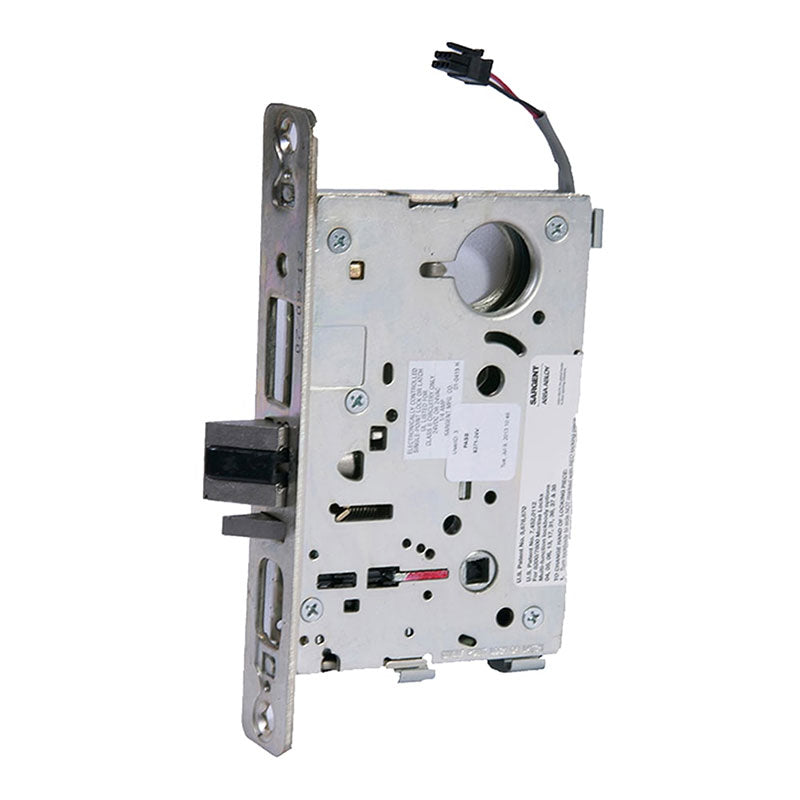

Sargent RX-8273-24V-US26D Lock Body Only, Electro Mechanical Fail Secure Function, Double Cylinder, Request to Exit, 24VDC, Satin Chrome Finish
The Sargent RX-8273-24V-US26D Lock Body Only features an Electro Mechanical Fail Secure Function, Double Cylinder, and Request to Exit components. This 24VDC lock boasts a Satin Chrome Finish, making it an ideal choice for secure and stylish locking needs.
73 Electric (Fail Safe)
- 73 function — Power ON, unlocks both levers
- Specify voltage: 24VDC
- Key outside retracts latch bolt
- The lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
RX- option: Request-to-Exit or Enter Signaling Switch
-
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Available in all functions with non rigid levers
- Not available for the following options: 1-, 3-, 74-
- Not available for the following trims: LS or FE
