Technical Specs
| Function |
Indicator with Cylinder Prep
|
| Cylinder Type |
Less Cylinder
|
| For Use With |
Exterior Sectional Mortise Trim |
| Product Type |
Indicator Kits |
Product Specs
| Manufacturer |
Sargent |
| SKU |
SA190 26D |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Application |
Indicator Kit Only |
| Finish |
626/US26D
|
| Finish Description |
Satin Chrome |
| Finish Family |
Matte Silver |

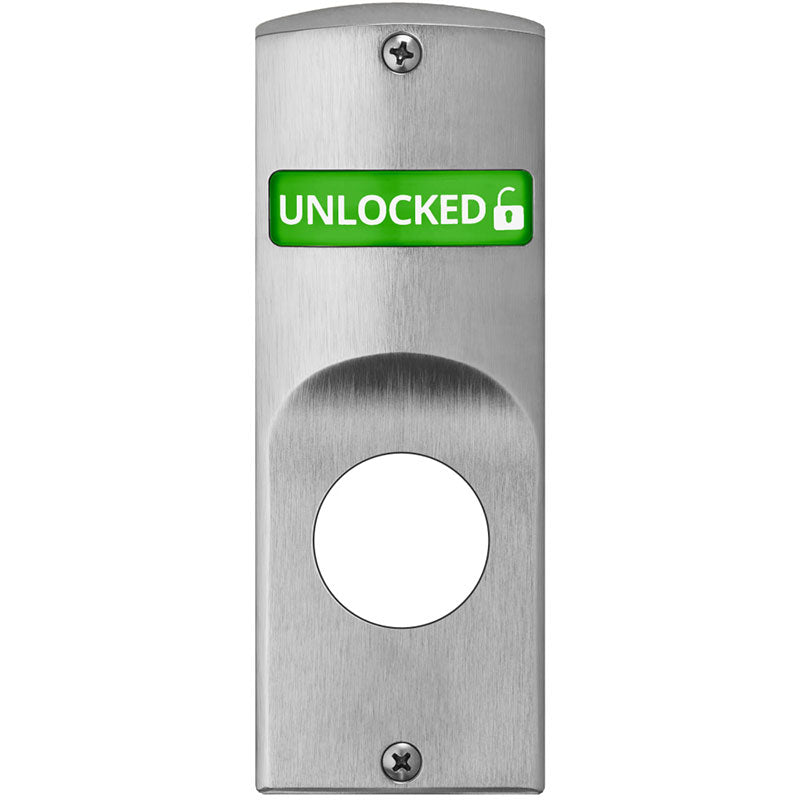

The Sargent SA190-US26D Mortise Lock Retrofit Status indicators are for Sargent 7800 and 8200 Series Mortise Locks with Sectional Trim, is Mounted Outside Of the Door, in a variety of Indicator Options, for use with 1 3/4" Thick Doors, are Field Reversible, and come in US26D Satin Chrome finish.
- Surface mounted
- Torx security screws provided
- Compatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3
- Compatible with all thumb turn designs
- Available with optional directional arrow engraving
- Not compatible with BHW, BHL, or BHD trims
SA190 is Used with Functions:
20, 21, 22, 24, 25, 26, 28, 29, 30, 39, 40, 41, 43, 45, 46, 47, 50, 51, 52, PHR-NAC-82281
Retrofit/Upgrade Kits
Retrofit/upgrade kits are available for existing applications only. Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.
Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions.
Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of the door require two kits
