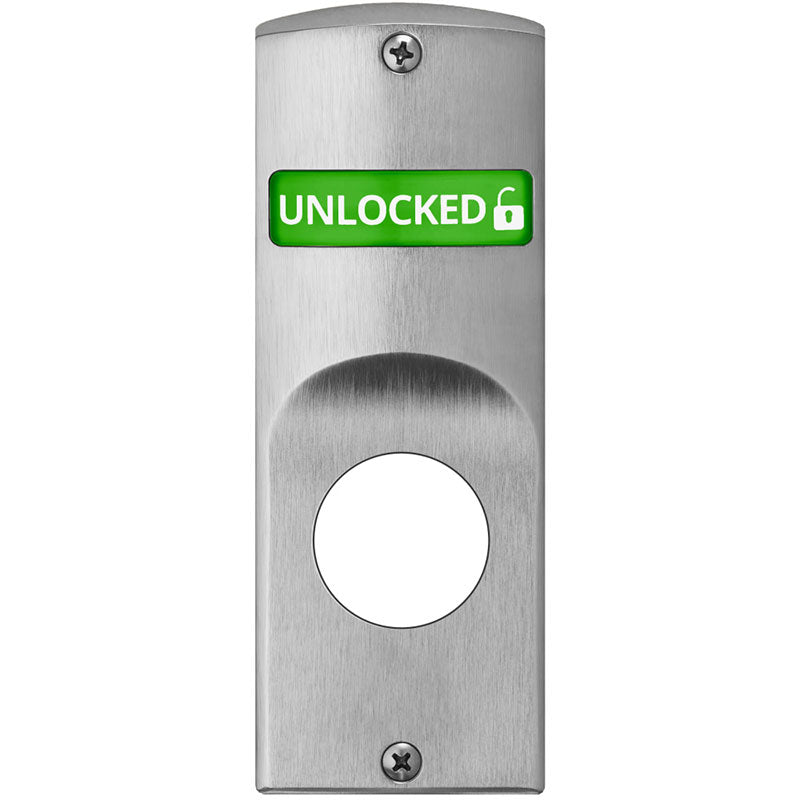

The Sargent SA191-US26D Mortise Lock Retrofit Status indicators are for Sargent 7800 and 8200 Series Mortise Locks with Sectional Trim, is Mounted Inside Of the Door, in a variety of Indicator Options, for use with 1 3/4" Thick Doors, they are Field Reversible, and come in US26D Satin Chrome finish.

• Surface mounted
• Torx security screws provided
• Compatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3
• Compatible with all thumb turn designs
• Available with optional directional arrow engraving
• Not compatible with BHW, BHL, or BHD trims

SA191 is Used with Sargent Mortise Lock Functions:
36, 56, 57, 58, 67

Retrofit/Upgrade Kits
Retrofit/upgrade kits are available for existing applications only. Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.

Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions.

Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of the door require two kits
