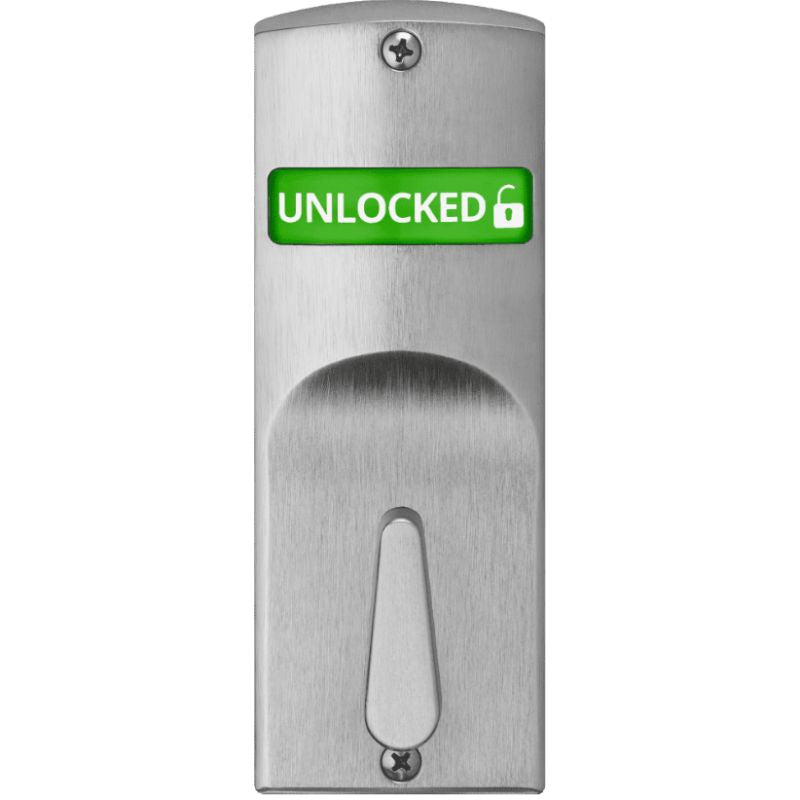

Sargent SA198-US26D-V01 Mortise Lock Retrofit Status Indicator Kit for Sectional Trim with Thumbturn, For Series 8200/7800, Interior Displays "Unlocked / Locked" in Green & Red Text, Satin Chrome Finish
The Sargent SA198-US26D Mortise Lock Retrofit Status indicators are for Sargent 7800 and 8200 Series Mortise Locks with Sectional Trim in Sargent 05 Mortise lock functions. The SA196-US26D is Mounted Inside of the Door, and comes in a variety of Indicator Options, for use with 1 3/4" Thick Doors, is Field Reversible, and comes in a US26D Satin Chrome finish.
- Surface mounted
- Torx security screws provided
- Compatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3
- Compatible with all thumb turn designs
- Available with optional directional arrow engraving
- Not compatible with BHW, BHL, or BHD trims
V01 Option Code
- Interior Displays "Unlocked / Locked" in Green & Red Text
SA198 is Used with Functions:
05
Retrofit/Upgrade Kits
Retrofit/upgrade kits are available for existing applications only. Each kit includes a single side indicator plate with a mechanism, screw pack, plastic template, and instructions.
Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions.
Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of the door require two kits
