Description

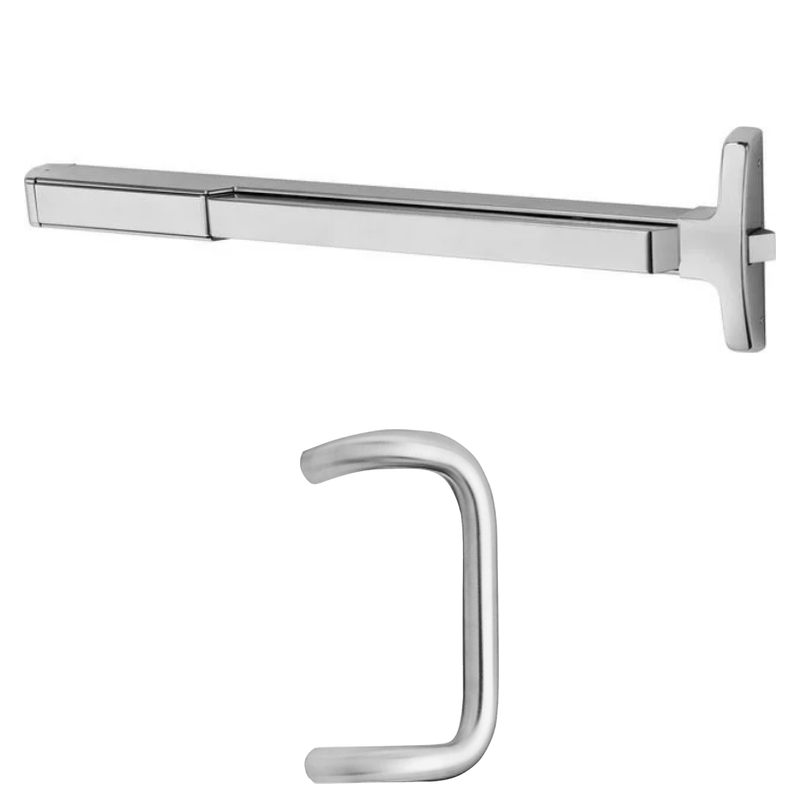

Sargent V01-64-16-PE8504F-862-US32D Rim Exit Device, Night Latch, For 33-36" Dr Widths, Satin Stainless Steel Finish, LFIC Temporary Core
The Sargent V01-64-16-PE8504F-862-US32D is a Grade 1 rim exit device engineered for demanding commercial openings that require reliable security and controlled access. Configured with the PE8504F night latch function, it allows entry from the outside pulling trim by key when the latch is retracted, while always permitting free egress from the inside. Designed for door widths between 33" and 36", this unit ships with a satin stainless steel (US32D) finish and includes an LFIC temporary core to support keying flexibility during installation. Durable construction and a smooth touchpad action make it a dependable choice for schools, healthcare facilities, and high-traffic entryways.
Features
- Grade 1 rim exit device built for heavy commercial use and long service life.
- Night latch (PE8504F) function provides key-controlled entry from the outside with continuous free egress.
- Sized for 33" to 36" door widths for a secure, proper fit.
- Satin stainless steel (US32D) finish resists wear and blends with most hardware.
- Includes a large format interchangeable core (LFIC) temporary core for keying convenience.
- Fire-rated (F) configuration suitable for labeled door assemblies.
Functional Details
The night latch function operates so that the outside trim is always locked, requiring a key to retract the latch and gain entry, while the inside push bar allows unrestricted exit at all times. This makes it ideal for perimeter doors where secured access control is needed without compromising egress.
- Night Latch - Key outside unlocks latch for entry.
- Free egress at all times from the inside via the touchpad.
Arm Type Details
The PE8504F pull trim provides a fixed exterior pull paired with the keyed cylinder, giving users a sturdy grip to open the door once the latch has been retracted by key.
Included Components
This unit ships with the rim exit device, PE8504F exterior pull trim with keyed cylinder, mounting hardware, and an LFIC temporary core.
Product Specifications
| Manufacturer | Sargent |
| SKU | V01-64-16-PE8504F-862 |
| Grade | ANSI/BHMA Grade 1 |
| Device Type | Rim Exit Device |
| Function | Night Latch (PE8504F) |
| Finish | Satin Stainless Steel (US32D / 630) |
| Core Type | LFIC Temporary Core |
| Fire Rating | Fire Rated (F) |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed for Panic and Fire Exit Hardware |
| Limited Warranty | Yes, manufacturer limited warranty |
Technical Specifications
| Door Width Range | 33" to 36" |
| Device Series | 80 Series |
| Mounting Type | Rim |
| Latchbolt Type | Deadlatching |
| Latchbolt Throw | 3/4" |
| Door Thickness | 1-3/4" standard |
| Cylinder Type | Large Format Interchangeable Core (LFIC) |
| Trim Type | PE8504F Pull Trim |
| Handing | Non-handed |
| ANSI/BHMA Standard | ANSI/BHMA A156.3 |
