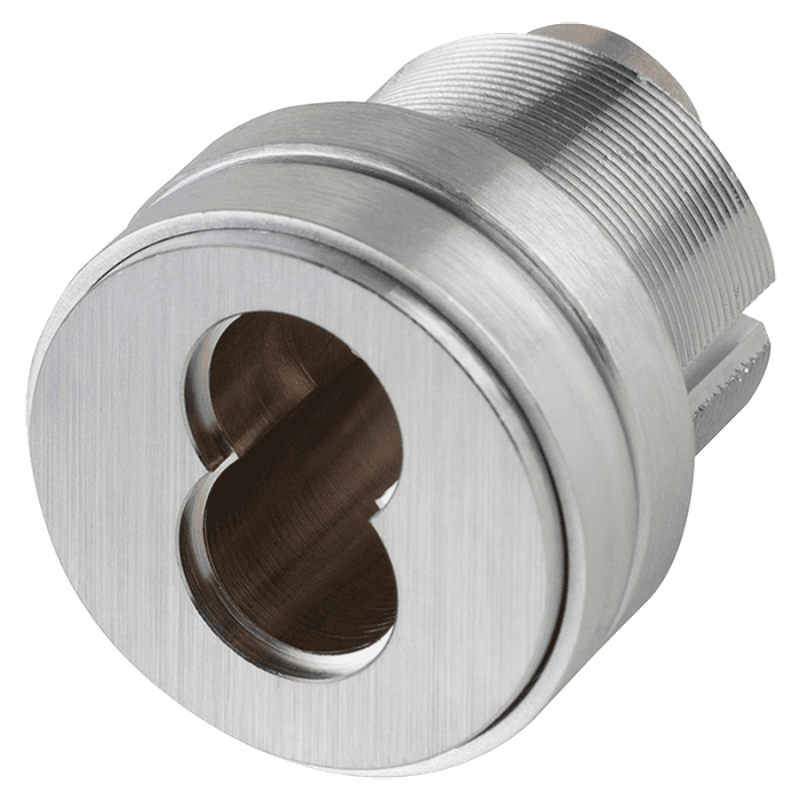

Schlage 80-101 SFIC Mortise Housing, 1 3/8 Inch, Schlage L Cam, Compression Ring, Spring, 1/4 In. Blocking Ring

The Schlage 80-101 SFIC Mortise Housing is engineered to accept small format interchangeable core (SFIC) cylinders in mortise lock applications, giving facilities the flexibility of rekeyable, interchangeable core security. This 1 3/8 inch housing ships complete with a Schlage L cam, compression ring, spring, and a 1/4 inch blocking ring, so installers have the hardware needed to mount the core correctly and maintain proper cylinder depth. Built to Schlage's durable standards, it is a dependable choice for commercial doors requiring standardized keying and simple core replacement. Ideal for schools, offices, and multi-tenant buildings where masterkeying and quick rekeying are priorities.

Features

• Designed to house small format interchangeable core (SFIC) cylinders in mortise lock installations.
• Includes a Schlage L cam for compatibility with Schlage mortise locks.
• Comes with a compression ring and spring for secure core retention.
• Supplied with a 1/4 inch blocking ring to set correct cylinder projection.
• 1 3/8 inch housing length suited to standard mortise applications.
• Supports interchangeable core keying for fast rekeying and masterkey flexibility.

Functional Details

The mortise housing threads into the lock case and holds the SFIC core in place using the included compression ring and spring, while the L cam transfers rotation from the core to the lock mechanism. The blocking ring adjusts the effective depth so the core seats flush at the door face.

Included Components

Each assembly includes the mortise housing, Schlage L cam, compression ring, spring, and a 1/4 inch blocking ring.
