Name: Schlage ALX10-LON Passage Cylindrical Lock, Longitude Lever, Non-Keyed
Brand: SCHLAGE
SKU: ALX10LON626
Price: 228.14 USD
Availability: InStock

All SCHLAGE Products

Schlage ALX10-LON Passage Cylindrical Lock, Longitude Lever, Non-Keyed

SKU: ALX10LON626

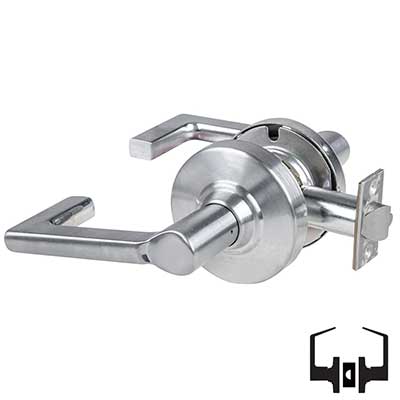

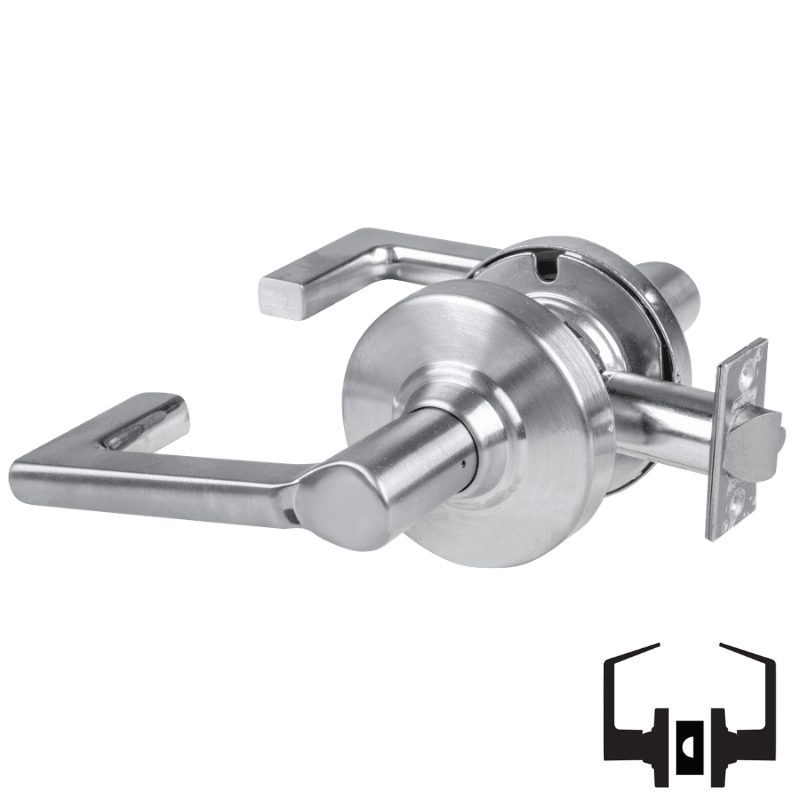

Schlage ALX10-LON-626 Passage Cylindrical Lock

All SCHLAGE Products

Technical Specs

Function	10 Passage Latch
Function Family	Passage
ANSI Function	F75 - Passage
Lever/Knob Design	LON- Longitude Lever
Lever/Knob Design Family	Straight Return Lever
Rose/Escutcheon Dimensions	3-7/16" Rose Diameter
Cylinder Type	Non-Keyed
Handing	Non-handed
Door Thickness	1-3/8 In. - 1-3/4 In.
Std. Latch Number	47267038
Std. Latch Type	Springlatch
Std. Latch Backset Dim	2-3/4 In.
Latch Bore Diameter	7/8 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	47267101
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8 In.
Std. Strike Width	1-1/4 In.
Screws	Combination
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
Grade	Grade 2
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL
ANSI Number	A156.2-2011 Series 4000, Grade 2
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ALX10-LON is a Cylindrical Passage function lock, with a Longitude Lever, with Field Selectable Vandlgard feature, is Non-Keyed, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX10 Passage Lock - No Key, Plain lever both sides, spring latch. Both lever always unlocked,

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
