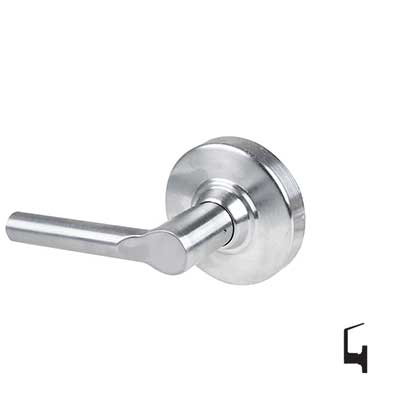

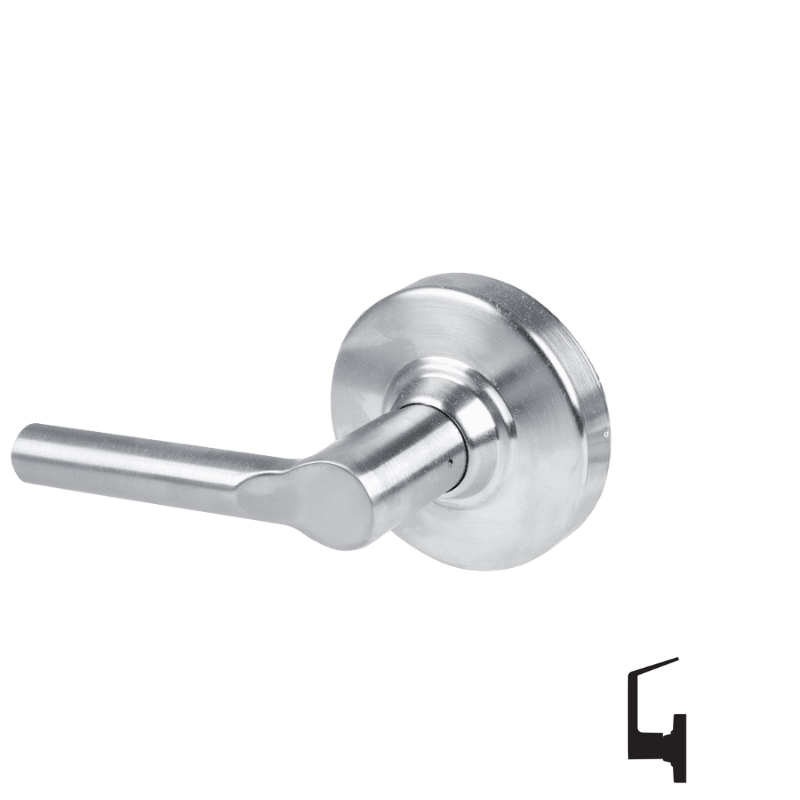

The Schlage ALX170-BRW is a Single Dummy Trim, with an Broadway Lever, is Non-Keyed, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX170 Single Dummy Trim - No Key; rigid plain lever outside; no hardware inside; no latchbolt. Use as a door pull or matching inactive trim.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Function | 170 Single Dummy Trim |
| Function Family | Dummy |
| Lever/Knob Design | BRW- Broadway Lever |
| Lever/Knob Design Family | Straight Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
