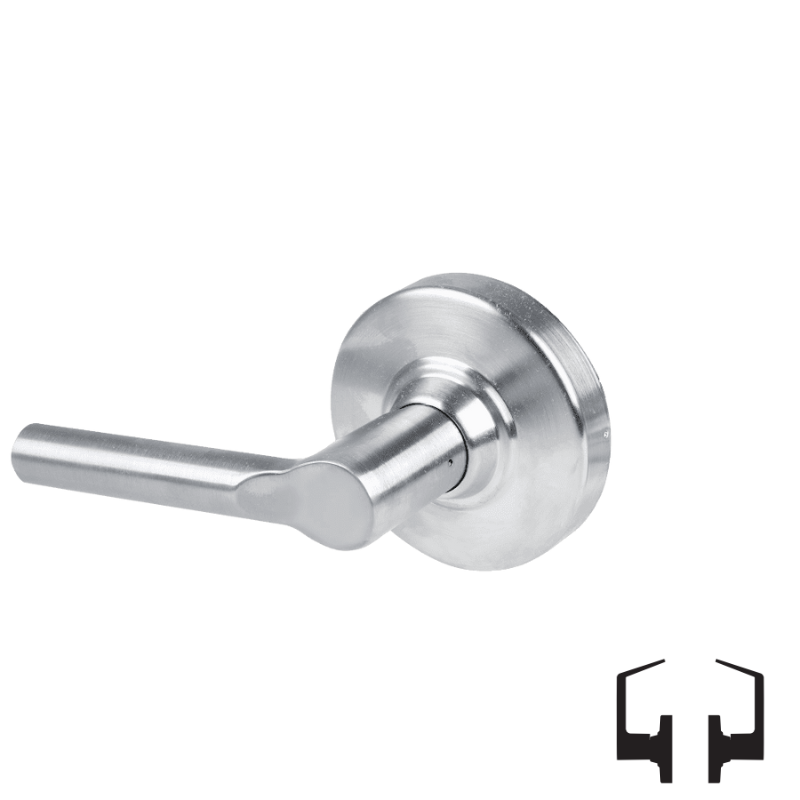

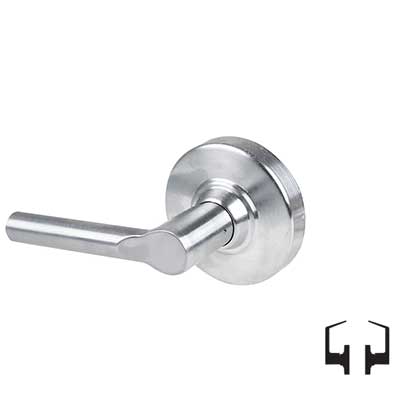

The Schlage ALX172-BRW is a Double Dummy Trim, with an Broadway Lever, is Non-Keyed, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.
Schlage ALX172 Double Dummy Trim - No Key; rigid plain lever outside; no hardware inside; no latch. Use as a door pull or matching inactive trim.
ALX Series Grade 2 Cylindrical Lock
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
Manufacturer | Schlage |
Grade | Grade 2 |
Installation | Commercial |
Origin | Mexico |
Unit of Measure | Each |
UL Listing Type | UL/cUL |
ANSI Number | A156.2-2011 Series 4000, Grade 2 |
Limited Warranty | 10 Years |
Fire Rated | 3 Hours {A} |
ADA Compliance | Yes |
Function | 172 Double Dummy Trim |
Function Family | Dummy |
Lever/Knob Design | BRW Broadway Lever |
Lever/Knob Design Family | Straight Lever |
Rose/Escutcheon Design |
3-7/16" Rose Diameter |
Rose/Escutcheon Dimensions | Rhodes |
Cylinder Type |
Non-Keyed |
Handing | Non-handed |
Door Thickness | 1-3/8" - 1-3/4" |
Screws | Combination |
Product Type | Cylindrical Lock |
