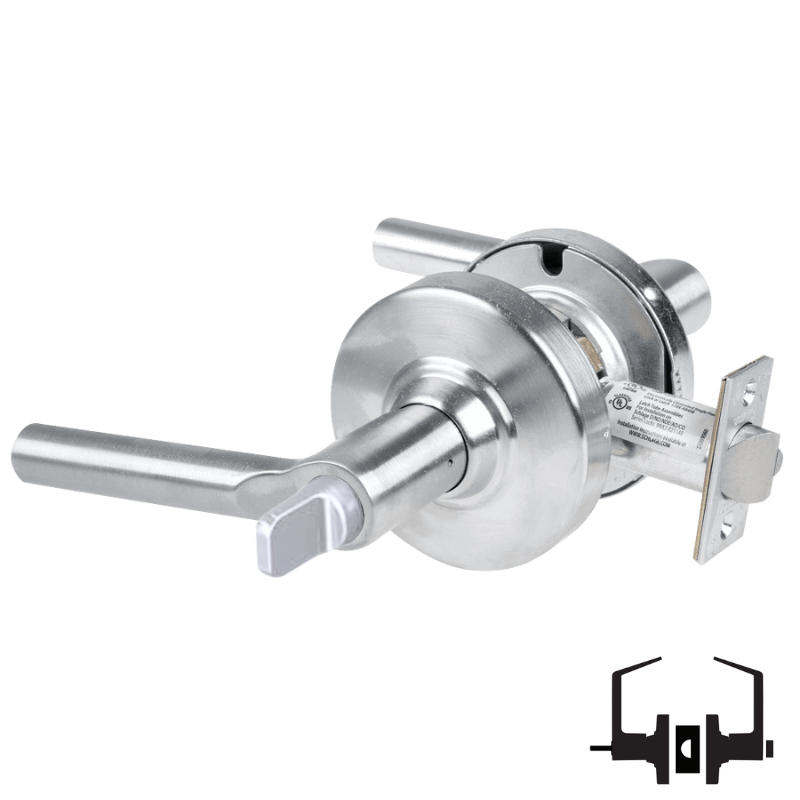

Schlage ALX44-BRW Hospital Privacy Cylindrical Lock, Broadway Lever, Non-Keyed

SKU: ALX44BRW626

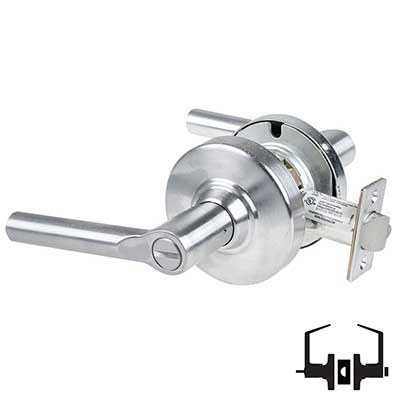

Schlage ALX44-BRW-626 Hospital Privacy Cylindrical Lock

Schlage ALX44-BRW-622 Hospital Privacy Cylindrical Lock

All SCHLAGE Products

Schlage ALX44-BRW Hospital Privacy Cylindrical Lock, Broadway Lever, Non-Keyed

SKU: ALX44BRW626

$256.37/ea

In Stock

In Stock

Choose your options

Choose Your Product Options:

Choose Region *

Painting Format *

Image Resolution *

Frame

Portrait Canvas Size (With Frame) *

Add HQ Digital Image

Add 8K x 8K Digital Image (FREE) (+$0.00)

Add 12K x 12K Digital Image (+$15.00)

Add 16K x 16K Digital Image (+$25.00)

Mint as NFT

Quantity:

Technical Specs

Function	44 Hospital Privacy Lock
Function Family	Privacy
Lever/Knob Design	BRW Broadway Lever
Lever/Knob Design Family	Straight Lever
Rose/Escutcheon Design	3-7/16" Rose Diameter
Rose/Escutcheon Dimensions	Rhodes
Cylinder Type	Non-Keyed
Handing	Non-handed
Door Thickness	1-3/8" - 1-3/4"
Std. Latch Number	47267038
Std. Latch Type	Springlatch
Std. Latch Backset Dim	2-3/4"
Latch Bore Diameter	7/8 In.
Lock Face Size	1-1/8 In. x 2-1/4 In.
Bolt Projection	1/2 In.
Bore Hole Diameter	2-1/8 In.
Std. Strike Number	47267101
Std. Strike Type	ANSI Strike
Std. Strike Height	4-7/8"
Std. Strike Width	1-1/4"
Screws	Combination
Product Type	Cylindrical Lock

Product Specs

Manufacturer	Schlage
Grade	Grade 2
Installation	Commercial
Origin	Mexico
Unit of Measure	Each
UL Listing Type	UL/cUL
ANSI Number	A156.2-2011 Series 4000, Grade 2
Limited Warranty	10 Years
Fire Rated	3 Hours {A}
ADA Compliance	Yes

The Schlage ALX44-BRW is a Cylindrical Hospital Privacy function lock, with a Broadway Lever, with Field Selectable Vandlgard feature, is Non-Keyed, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX44 Hospital Privacy Lock - No key; emergency turn-button outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside turn-button provides emergency access. Inside lever is always free for immediate egress.

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.
