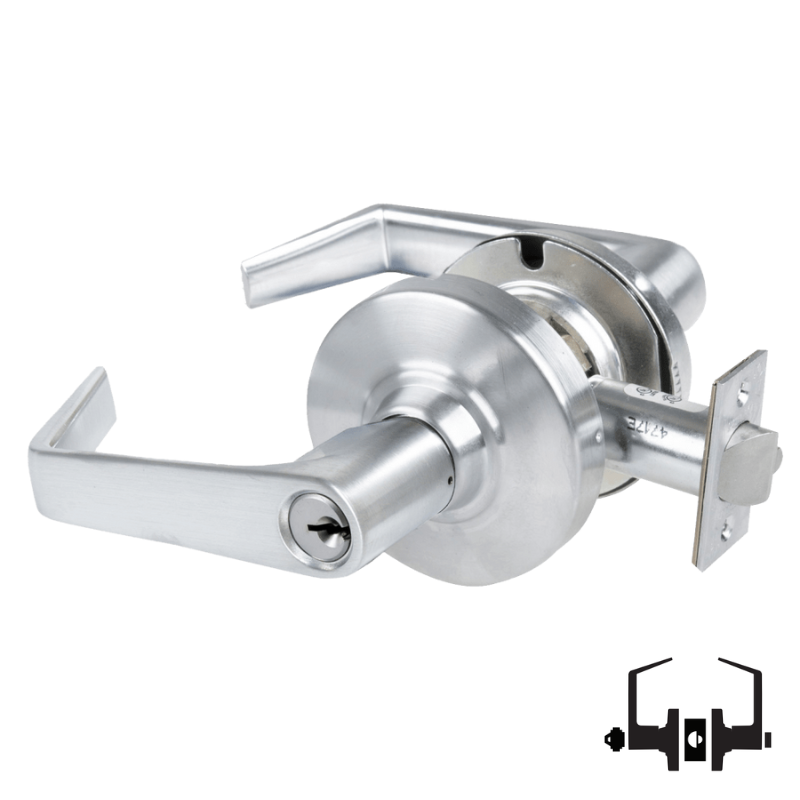

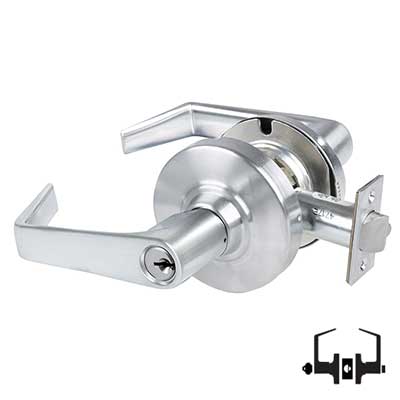

Schlage ALX50P6-SAT Office Cylindrical Lock, Saturn Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6SAT626
Schlage ALX50-P6-SAT-626
Schlage ALX50-P6-SAT-626
SchlageALX50
Schlage ALX50P6-SAT Office Cylindrical Lock, Saturn Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX50-P6-SAT-605
Schlage ALX50-P6-SAT-606
Schlage ALX50-P6-SAT-612
Schlage ALX50-P6-SAT-613
Schlage ALX50-P6-SAT-619
Schlage ALX50-P6-SAT-622
Schlage ALX50-P6-SAT-625
Schlage ALX50-P6-SAT-643E
All SCHLAGE Products

Schlage ALX50P6-SAT Office Cylindrical Lock, Saturn Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6SAT626
  • ✓
    In Stock
    In Stock
Your Price
$279.30 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX50-P6-SAT Office Cylindrical Lock, Field Selectable Vandlgard, Saturn Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

The Schlage ALX50P6-SAT combines commercial-grade security with practical versatility for office applications. This Grade 2 cylindrical lock incorporates a Saturn lever handle and field-selectable Vandlgard feature for enhanced protection against forced entry. The 6-pin Schlage "C" keyway with keyed different operation ensures individualized access control. Standard specifications include 2-3/4 inch backset, 4-7/8 inch strike plate, and non-handed installation capability. Supplied with two keys for immediate deployment. A dependable choice for professional workplace security requirements.

ALX50 Single Cylinder Deadbolt Function, Entrance/Office Lock

  • Key cylinder outside; push button inside; deadlatch
  • Inside push button locks outside lever
  • Unlock with key outside or by rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 50 Entrance Office Lock
Function Family Entrance
ANSI Function F82 - Entry
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
