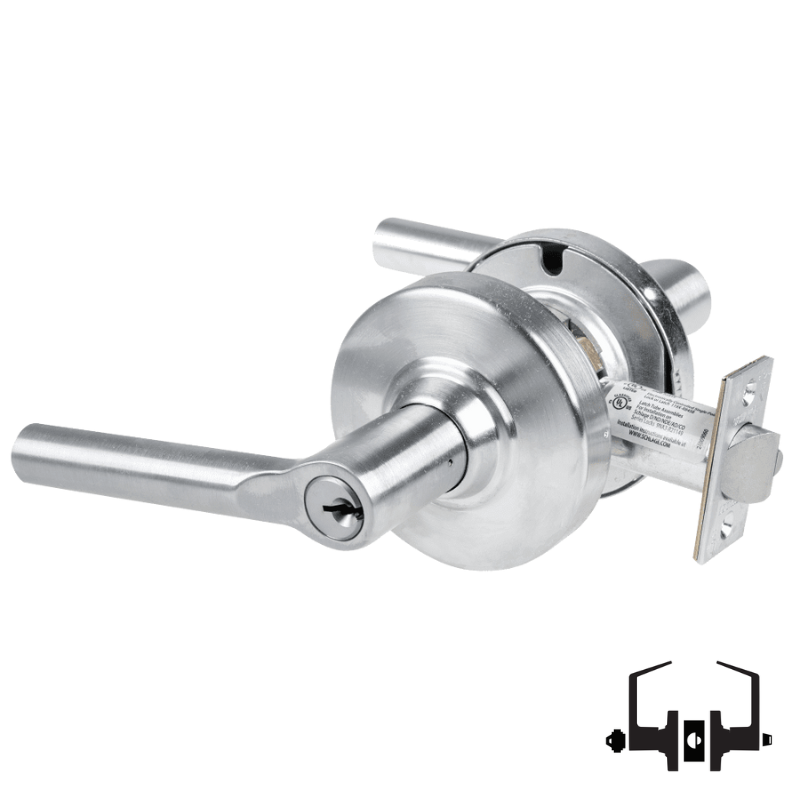

The Schlage ALX53P6-BRW entrance cylindrical lock delivers commercial-grade security with professional-grade reliability. This Grade 2 lock features a Broadway lever design paired with a 6-pin Schlage C keyway for enhanced pick resistance. Field-selectable Vandlgard functionality provides flexible security configurations to match your specific access requirements. The non-handed design simplifies installation across various door orientations, while the 2-3/4 inch backset and 4-7/8 inch strike accommodate standard commercial door preparations. Includes two keys, each keyed different for individual access control. Ideal for office entrances, retail spaces, and institutional applications demanding dependable performance.
ALX53 Single Cylinder Deadbolt Function, Entrance lock
| Manufacturer | Schlage |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL |
| ANSI Number | A156.2-2011 Series 4000, Grade 2 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
| Function | 53 Entrance Lock |
| Function Family | Entrance |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design | BRW Broadway Lever |
| Lever/Knob Design Family | Straight Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | Rhodes |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Number | 47267042 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 47267101 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
