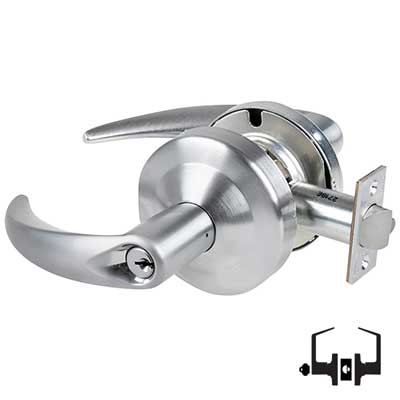

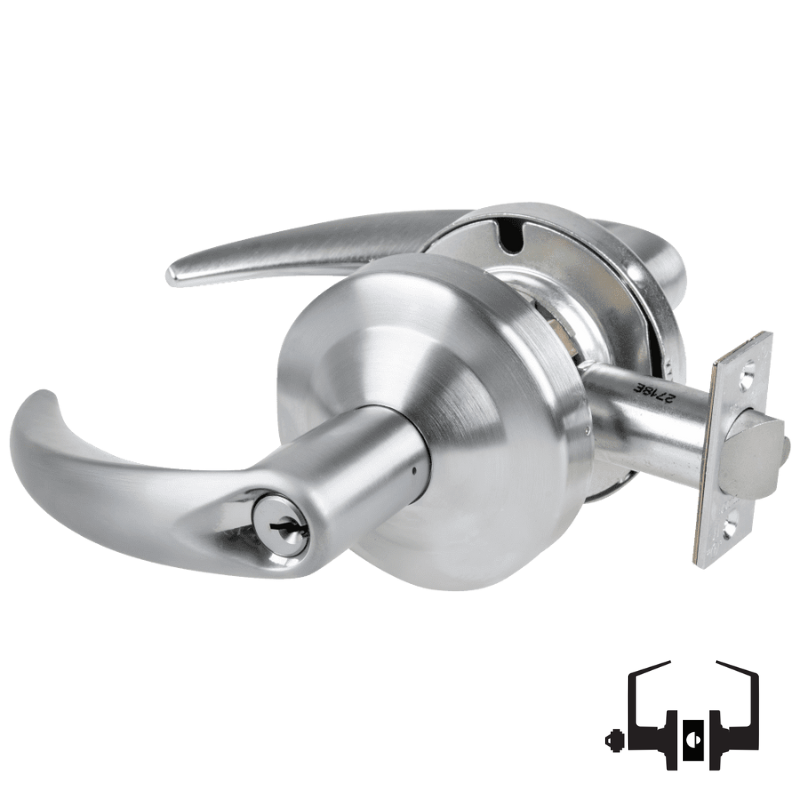

Schlage ALX80P6-OME Storeroom Cylindrical Lock, Omega Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6OME626
chlage ALX80-P6-OME-626
chlage ALX80-P6-OME-626
SchlageALX80
Schlage ALX80P6-OME Storeroom Cylindrical Lock, Omega Lever, 6 Pin Schlage "C" Keyway, Keyed Different
chlage ALX80-P6-OME-605
chlage ALX80-P6-OME-606
chlage ALX80-P6-OME-612
chlage ALX80-P6-OME-613
chlage ALX80-P6-OME-619
chlage ALX80-P6-OME-622
chlage ALX80-P6-OME-625
chlage ALX80-P6-OME-643E
All SCHLAGE Products

Schlage ALX80P6-OME Storeroom Cylindrical Lock, Omega Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6OME626
  • ✓
    In Stock
    In Stock
Your Price
$315.97 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX80-P6-OME Storeroom Cylindrical Lock, Field Selectable Vandlgard, Omega Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

This Schlage storeroom lock combines proven cylindrical design with advanced security features for institutional applications. The Omega lever mechanism integrates with a 6-pin Schlage "C" keyway to support keyed-different configurations, allowing distinct access credentials per user. Field-selectable Vandlgard technology provides installation-time flexibility for varied security requirements. Rated Grade 2 for commercial durability, it features a 2-3/4 inch backset compatible with standard door preparations and includes a 4-7/8 inch strike plate. The non-handed construction eliminates handedness restrictions, streamlining deployment across multiple door orientations. Two keys ship with each unit.

ALX80 Single Cylinder Deadbolt Function, Storeroom lock

  • Key cylinder outside; plain lever inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design OME Omega Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
