Schlage ALX80P6-SPA Storeroom Cylindrical Lock, Sparta Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6SPA626

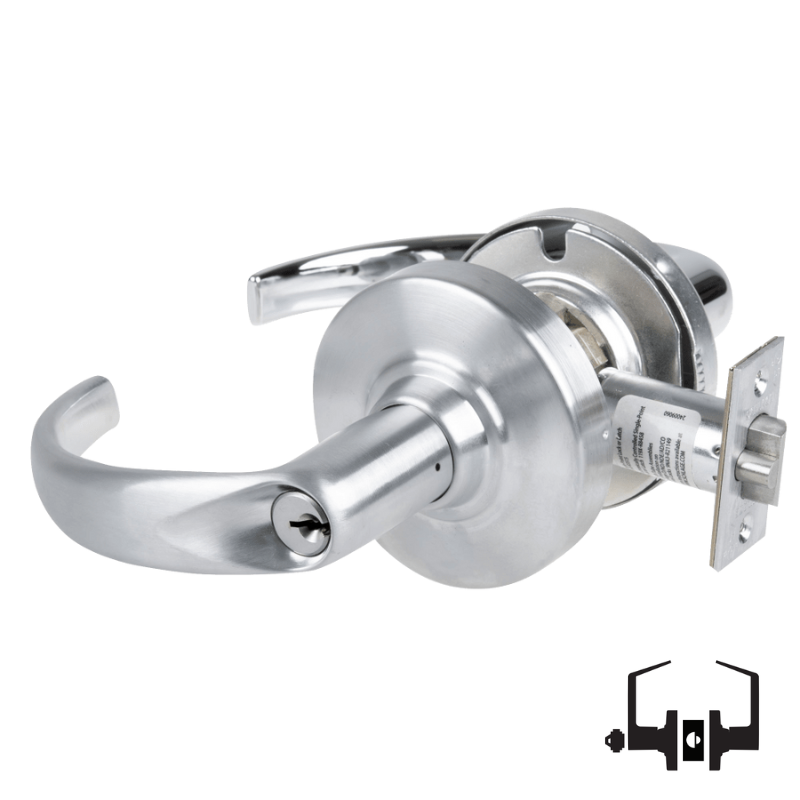

Schlage ALX80P6-SPA-626 Storeroom Cylindrical Lock
Schlage ALX80P6-SPA-626 Storeroom Cylindrical Lock
Schlage ALX80P6-SPA-622 Storeroom Cylindrical Lock
All SCHLAGE Products

Schlage ALX80P6-SPA Storeroom Cylindrical Lock, Sparta Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX80P6SPA626
  • ✓
    In Stock
    In Stock
Your Price
$315.97/ea
Schlage Finish: 626 - Satin Chromium Plated

The Schlage ALX80P6-SPA is a Cylindrical Storeroom function lock, with a Sparta Lever, with Field Selectable Vandlgard feature, 6 Pin Schlage "C" Keyway, Keyed Different, comes with 2 Keys, a 2 3/4" backset, a 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX80 Storeroom Lock - Key cylinder outside; plain lever inside; deadlatch. Outside lever always fixed. Key can retract the latch. Field selectable Vandlgard feature. Inside Lever always free for immediate egress.

Schlage ALX80 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.

Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 80 Storeroom Lock
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design SPA Sparta Lever
Lever/Knob Design Family Curved Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock


Product Cut Sheet
